Amesbury Truth 700C Regency Active Keyed Handleset – 92mm PZ, Matte Black

SKU:

$0.00 - $223.85

$0.00

$0.00 - $223.85

$0.00

PZ (Handle to Cylinder): 3-5/8" (92mm)
Door Thickness: 1-3/4" (44.5mm)
Escutcheon Plate Style: C-Style with slight arched top
Plate Dimensions: 1-3/4" (45mm) wide x 9-1/2" (241mm) tall
Screw Hole Spacing: 7-7/8" (200mm)
Cylinder Type: American with flat tailpiece, rotates 180°
Keyway: Schlage 5-pin (SC1 key blank)
Finish: Matte Black
Handing: Reversible (Left or Right Hand)
Function: Active keyed with interior thumbturn
Uses spring-loaded cassette and C-ring (circlip) lever retention

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

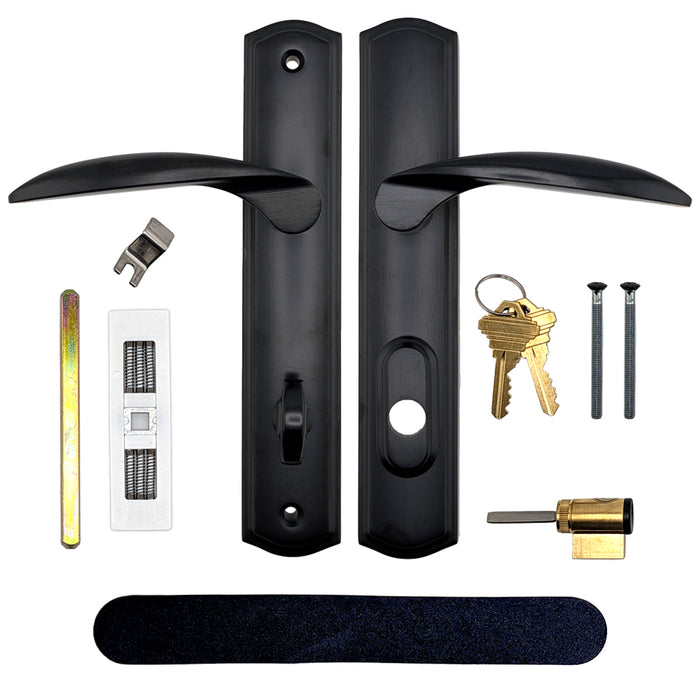

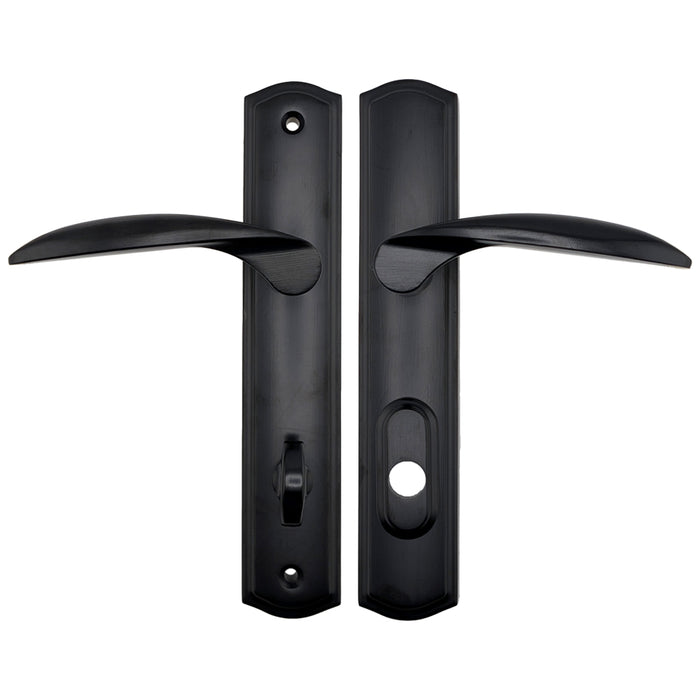

Amesbury Truth 700C Regency Active Keyed Handleset – Matte Black (395190)

This Amesbury Truth 700C Regency series handleset features a curved lever design with a slight arched top escutcheon plate, providing both style and functionality for primary entry doors equipped with multipoint locks. The active keyed configuration includes a keyed cylinder on the exterior and a thumbturn on the interior for convenient operation.

Designed for compatibility with most multipoint lock systems, this handleset works as a direct replacement for Integrity by Marvin, Milgard, G-U Ferco, and other American-style multipoint locks. The reversible handing allows installation on either left or right hand doors without purchasing a separate unit.

The lever mechanism uses a spring-loaded cassette for smooth, responsive action and is secured with a C-ring (circlip) rather than a set screw. The American cylinder accepts Schlage 5-pin keyways (SC1 key blank) with an optional Kwikset/Weiser composite keyway available separately.

Technical Information

PZ (Handle to Cylinder): 3-5/8 inches (92mm)
Door Thickness: 1-3/4 inches (44.5mm)
Escutcheon Plate Width: 1-3/4 inches (45mm)
Escutcheon Plate Height: 9-1/2 inches (241mm)
Screw Hole Spacing: 7-7/8 inches (200mm)
Cylinder Type: American with flat tailpiece (180° rotation)
Keyway: Schlage 5-pin (SC1)
Base Material: Zinc
Finish: Matte Black

Notes

Handing is reversible and can be changed during installation
Optional Kwikset/Weiser composite keyway available (not included)
For double French doors: pair one Active Keyed unit with one Inactive or Dummy unit

Replaces / Replaced by

Integrity by Marvin multipoint handlesets
Milgard multipoint handlesets
G-U Ferco American version multipoint handlesets

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean on a multipoint lock handleset?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This handleset has a 92mm PZ measurement, which is a common European standard.

Can I change the handing on this handleset?

Yes, the handing is reversible and can be changed during installation to accommodate either left or right hand doors.

What type of key does this handleset use?

This handleset uses an American cylinder with a Schlage 5-pin keyway (SC1 key blank). An optional Kwikset/Weiser composite keyway is available separately.
