Ashland Sentinel Swing XP25 Multipoint Lock Center Section – 60mm Backset, 92mm PZ

SKU: 4991330

$180.68 - $180.68

$180.68

$180.68 - $180.68

$180.68

PZ (Handle Spacing): 3-5/8" (92mm)
Backset: 2-3/8" (60mm)
Faceplate Width: 25/32" (20mm)
Deadbolt Throw: 1" (25.4mm)
Shootbolt Throw: 1" (25.4mm)
Key Position: Key above handle
Center Lock Faceplate: 40.93" (1040mm)
Overall Length: 44" (1117mm) retracted, 45-1/2" (1155mm) extended
Construction: Stainless steel
Stamped: Patent no. 6,209,931
Non-handed lock with reversible spring latch
Center gearbox section with deadbolt and spring latch (1 of 3 pieces)
Compatible with Jeld-Wen, Caradco, Therma-Tru, and others
Priced and sold each

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Ashland Sentinel Swing XP25 Center Lock – 60/92 (4991330)

This is the center section of the Ashland Sentinel Swing Multipoint XP25 3-point lock system. The gearbox includes a deadbolt and spring latch, serving as 1 of 3 pieces in the complete multipoint lock assembly. This lock is used by Jeld-Wen, Caradco, Therma-Tru, and other door manufacturers.

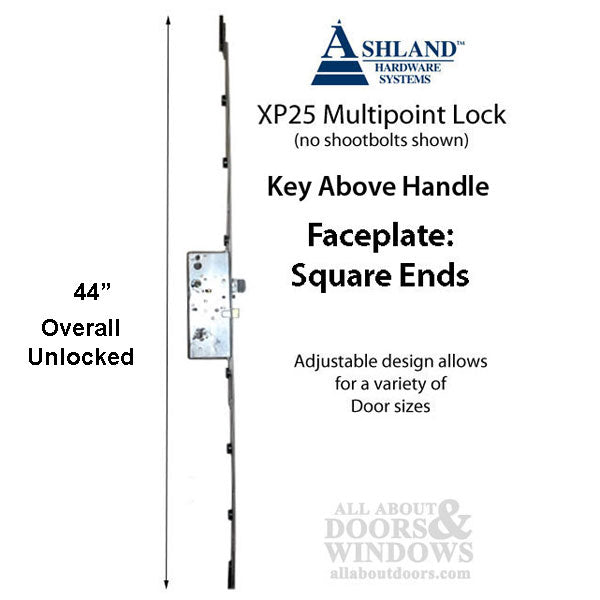

The lock features a 2-3/8 inch (60mm) backset and 3-5/8 inch (92mm) PZ handle spacing with the key positioned above the handle. The center lock faceplate measures 40.93 inches (1040mm), with an overall length of 44 inches (1117mm) when retracted and 45-1/2 inches (1155mm) when extended and locked. The faceplate width is 25/32 inch (20mm).

Both the deadbolt and shootbolt have a 1 inch (25.4mm) throw. The deadbolt and shootbolt extensions operate independently, and an anti-slam device prevents potential door frame damage. The lock utilizes a peg-hole connection system for quick and easy installation.

This lock is designed to use a pair of shootbolts but can be installed and used with or without them. With shootbolt extensions applied, this lock is adjustable and will fit a variety of door sizes.

Stamped With

Patent no. 6,209,931

Technical Information

Backset: 2-3/8 inches (60mm)
PZ (Handle Spacing): 3-5/8 inches (92mm)
Faceplate Width: 25/32 inch (20mm)
Deadbolt Throw: 1 inch (25.4mm)
Shootbolt Throw: 1 inch (25.4mm)
Center Lock Faceplate: 40.93 inches (1040mm)
Overall Length (Retracted): 44 inches (1117mm)
Overall Length (Extended): 45-1/2 inches (1155mm)
Construction: Stainless Steel
Key Position: Key above handle
Caradco Part Number: 4101341

Notes

Non-handed lock – spring latch can be reversed to accommodate left or right-hand doors
To reverse handing: Insert screwdriver into slot behind latch, pull down on handing release, rotate latch, and push back into lock case
Always check the function of the lock before closing the door
This lock has two design variations with the same measurements but slightly different construction – the second design has radius/rounded ends with one end that swivels 360 degrees on a pivot
Old style and new style are interchangeable

Related Parts

4440201 – Shootbolt Extension for 77" door
4440203 – Shootbolt Extension for 80" door
4440205 – Shootbolt Extension for 93" door

How to Operate

To latch: Lift the handle to engage top and bottom shootbolts, then rotate thumb turn or key to engage deadbolt
To unlock: Reverse the process

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can this lock be used on both left and right-hand doors?

Yes, this is a non-handed lock. The spring latch can be reversed by inserting a screwdriver into the slot behind the latch, pulling down on the handing release, rotating the latch, and pushing it back into the lock case.

Do I need the shootbolt extensions to use this lock?

No, this lock can be installed and used with or without the shootbolt extensions. However, the lock is designed to work with a pair of shootbolts for full 3-point locking functionality.

What is the difference between the old and new style versions?

The two versions have the same measurements but slightly different construction. The newer design has radius/rounded ends with one end that swivels 360 degrees. Both styles are interchangeable.
