Amesbury 400A Active Handle Set – Right Hand, 92mm PZ

SKU:

$132.12 - $629.72

$132.12

$132.12 - $629.72

$132.12

PZ (Handle to Cylinder): 3-5/8" (92mm)
Handing: Right Hand (reversible)
Door Thickness: 1-3/4" (44.5mm)
Escutcheon Style: A Style - Rounded Top
Plate Dimensions: 1.26" W x 9.65" H (32mm x 245.1mm)
Screw Hole Spacing: 8.46" (214.9mm)
Cylinder Type: American with flat tail piece
Keyway: Schlage 5-pin (SC1) or optional Kwikset-Weiser
Handle Projection: 2.23" (56.6mm)
Base Material: Zinc (brass substrate PVD available for coastal areas)
Replaces Integrity by Marvin, Milgard, G-U/Ferco, and other American multipoint locks
Choose from Wet White, Vision Tan, Mineral Bronze, or Dark ORB finishes

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Amesbury 400A Active Handle Set – RH, 92mm PZ (395173)

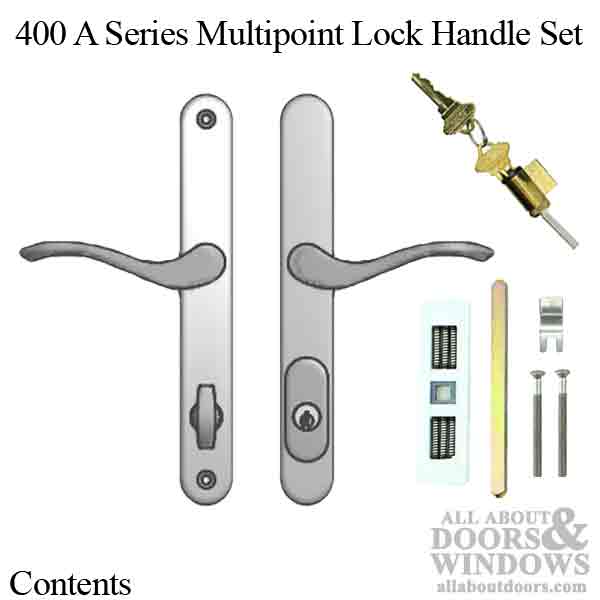

The Amesbury 400A Active Handle Set is a keyed multipoint lock trim designed for right-hand primary entry doors. Part of the Regency series, this handle set features a curved lever and rounded top escutcheon plate that provides both style and functionality for residential applications.

This trim is engineered to replace multipoint lock hardware on Integrity by Marvin, Milgard, G-U/Ferco, and other American-style multipoint lock systems. The active configuration includes keyed entry on the exterior with a convenient thumb-turn on the interior side.

Technical Information

PZ (Handle to Cylinder): 3-5/8 inches (92mm)
Door Thickness: 1-3/4 inches (44.5mm)
Escutcheon Plate Style: A Style - Rounded Top
Plate Width: 1.26 inches (32mm)
Overall Plate Height: 9.65 inches (245.1mm)
Screw Hole Spacing: 8.46 inches (214.9mm)
Handle Projection: 2.23 inches (56.6mm)
Handle Clearance: 1.23 inches (31.2mm)
Handle Length: 4.88 inches (124mm)
Cylinder Type: American with flat tail piece
Keyway: Schlage 5-pin (SC1 key blank)
Optional Keyway: Kwikset-Weiser composite
Base Material: Zinc

Notes

Handing is reversible and can be changed during installation
Levers use a C-ring (circlip) retention system instead of set screws
Handle set includes a spring-loaded cassette for enhanced lever action
Brass substrate with PVD finish available for coastal applications (resists tarnishing and discoloration)
Zinc finish colors: Wet White, Vision Tan, Mineral Bronze, Dark ORB
Brass PVD finish: Satin Nickel
Other available functions: Inactive/Passive (no key, no thumb-turn, moving handles), Dummy (no key, no thumb-turn, fixed handles)
Single door requires 1 Active Keyed; Double French door requires 1 Active Keyed and 1 Inactive or 1 Dummy

Replaces / Replaced by

Integrity by Marvin multipoint lock trim
Milgard multipoint lock trim
G-U/Ferco American multipoint lock trim

Priced and sold each. Select your preferred color finish when ordering.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I change the handing on this handle set?

Yes, the handing is reversible and can be changed during installation to accommodate either left or right-hand doors.

What cylinder type does this handle set use?

This handle set uses an American cylinder with a flat tail piece. It comes standard with a Schlage 5-pin keyway (SC1 key blank), with an optional Kwikset-Weiser composite keyway available.

Is this handle set suitable for coastal environments?

Yes, a brass substrate version with PVD finish is available for coastal areas. PVD is a high-performance finish that resists tarnishing and discoloration from salt air exposure.
