Pella Single Point Handleset Replacement Kit – 60mm Backset, 85mm PZ

SKU

$661.10 - $1,210.00

$661.10

$661.10 - $1,210.00

$661.10

PZ (Handle Spacing): 3-11/32" (85mm)
Backset: 2-3/8" (60mm)
Faceplate: 7/8" x 9-3/8" (22mm x 238mm), square corners
Function: Active, keyed European profile cylinder with inside thumb-turn
Handing: Non-handed, works for both right and left hand doors
Available Finishes: Antique Brass, Polished Brass, Satin Nickel, Antique Nickel, Polished Chrome, Brushed Chrome, Oil Rubbed Bronze

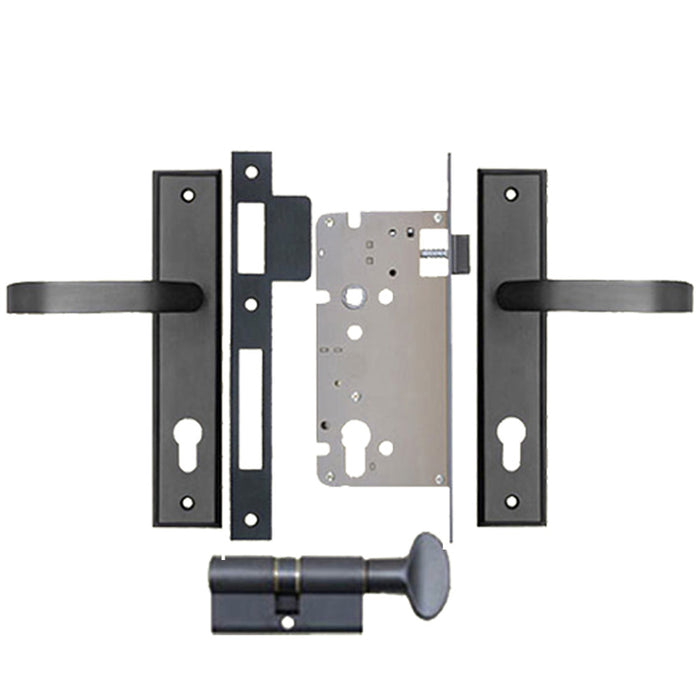

Kit Includes: Single point mortise lock, euro profile key cylinder, strike plate, handleset trim with handles, escutcheon plates and screws
Fits older Pella doors with single point locks
Some door jamb modification may be required
Special order item: Cannot be returned or exchanged

Quantity

Estimated Delivery

Between December 13 and December 17

*Delivery dates are estimates and may vary based on availability and shipping method

Product Details

Pella 85mm PZ Handleset Kit (40177)

This special order replacement handleset kit is designed for older Pella doors with single-point mortise locks featuring an uncommon 85mm PZ (handle spacing). The kit provides a complete solution for replacing discontinued Pella hardware, including the mortise lock body, European profile key cylinder, strike plate, handleset trim, and all necessary mounting hardware.

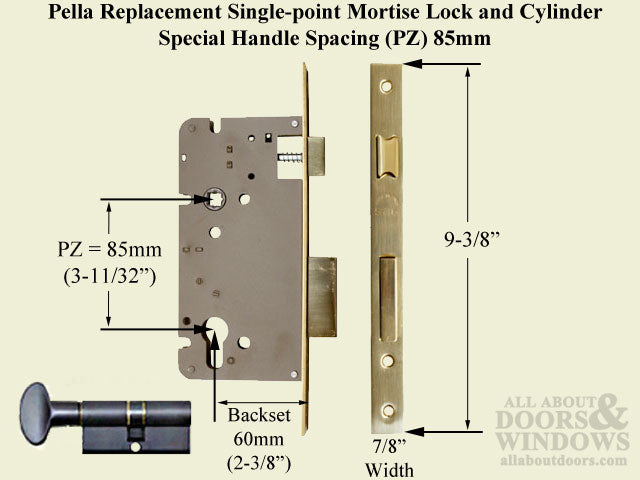

The included single-point mortise lock features a 2-3/8 inch (60mm) backset and a 7/8 x 9-3/8 inch faceplate with square corners. Note that the original Pella lock had a 2-3/16 inch (55mm) backset and radius corners, so some modification to the door jamb may be required during installation.

This handleset is non-handed, making it suitable for both right-hand and left-hand door configurations. The active function includes a keyed European profile cylinder on the exterior and a thumb-turn on the interior for convenient operation.

Technical Information

PZ (Handle Spacing): 3-11/32 inches (85mm)
Backset: 2-3/8 inches (60mm)
Original Pella Backset: 2-3/16 inches (55mm)
Faceplate Dimensions: 7/8 x 9-3/8 inches, square corners
Lock Type: Single-point entrance mechanism
Cylinder Type: European profile

Notes

Plates less than 10 inches in height may not cover marks from old trim
Congressional and Coronet plates are 1-15/16 x 10-1/8 inches
Villa plate is 1-7/8 x 10-15/16 inches
All other plates are less than 10 inches in height

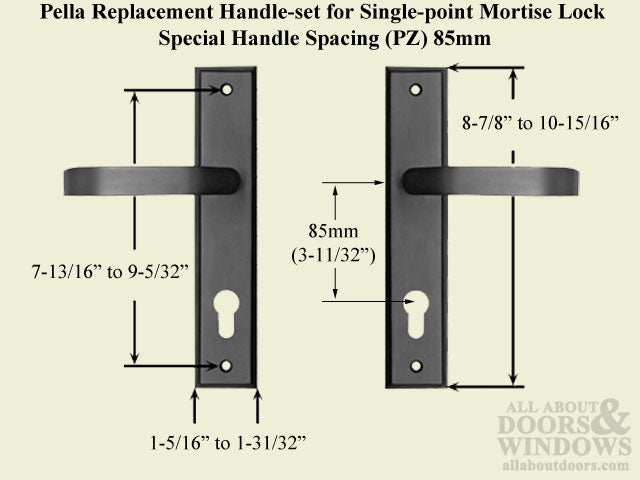

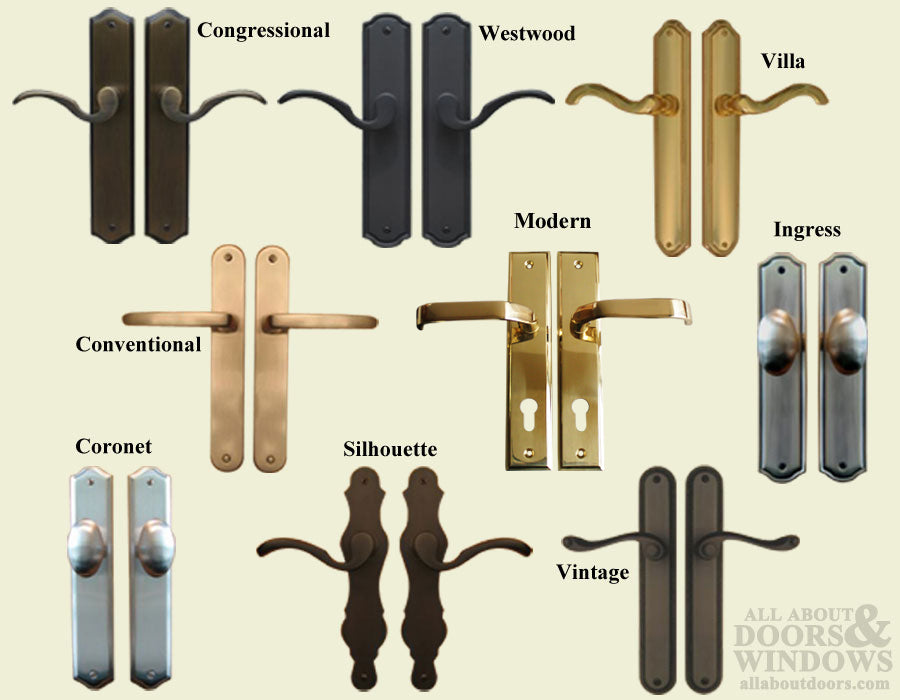

Lever and Backplate Options:
Congressional: 1-15/16" x 10-1/8" (8-3/4" screw spacing)
Westwood: 1-7/8" x 8-7/8" (7-13/16" screw spacing)
Villa: 1-7/8" x 10-15/16" (9-1/8" screw spacing)
Vintage: 1-1/2" x 9-1/16" (7-15/16" screw spacing)
Conventional: 1-5/16" x 9-1/16" (8-3/8" screw spacing)
Modern: 1-3/4" x 9-1/16" (8-7/16" screw spacing)
Silhouette: 2" x 9-3/16" (8" screw spacing)
Coronet: 1-15/16" x 10-1/8" (8-11/16" screw spacing)
Ingress: 1-7/8" x 8-7/8" (7-13/16" screw spacing)

Replaces / Replaced by

Replaces Pella part #9099998 (discontinued single-point mortise lock with 85mm PZ and 55mm backset)

This is a special order item and cannot be returned or exchanged.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Will this handleset fit my older Pella door?

This kit is designed for older Pella doors with single-point locks that have an 85mm PZ (handle spacing). Some door jamb modification may be required since the backset differs from the original Pella specification.

What is the difference between this replacement and my original Pella lock?

The original Pella lock had a 55mm backset and radius faceplate corners. This replacement has a 60mm backset and square faceplate corners, which may require minor modifications during installation.

Which backplate style should I choose to cover old trim marks?

For best coverage of marks from old trim, choose Congressional, Coronet, or Villa plates as they are 10 inches or taller. Other plate styles are shorter and may not fully cover existing marks.
