Neuma Multipoint Lock for 80-1/4" Out-Swing Doors – 60mm Backset, 133mm PZ

SKU 395095-NI

$744.01 - $744.01

$744.01

$744.01 - $744.01

$744.01

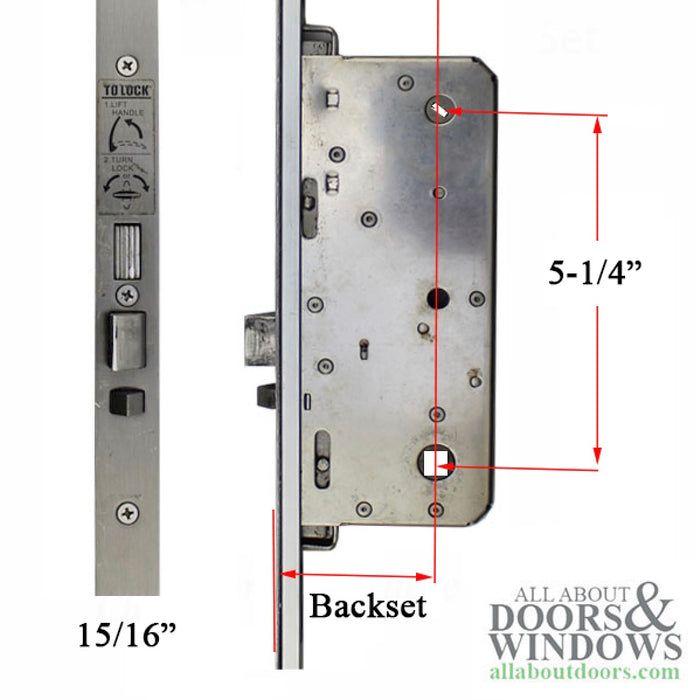

PZ (Handle to Cylinder): 5-1/4" (133mm)
Backset: 2-3/8" (60mm)
Faceplate Width: 15/16" (24mm)
Overall Length: 80-1/4" (2038mm)
Handle Height: 37" (940mm)

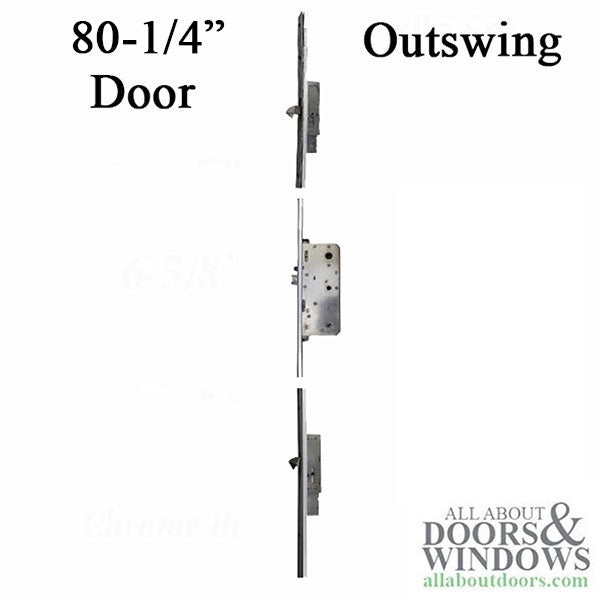

Application: 80-1/4" Out-Swing Door
Cylinder Type: American
Handle Position: Key Above Handle
Hook Configuration: Top hook points down, bottom hook points up
Lower Hook Position: 30-3/4" (781mm)
Upper Hook Position: 38-1/4" (972mm)
Stamped: Pat M267300
Handing is reversible
Sold as a complete one-piece unit

Quantity

Estimated Delivery

Between December 11 and December 15

*Delivery dates are estimates and may vary based on availability and shipping method

Product Details

Neuma Multipoint Lock – 80-1/4" Out-Swing (395095)

This Neuma multipoint lock is a direct Taiwanese import designed primarily for fiberglass doors. It features an unusual handle to thumb turn spacing of 5-1/4 inches (133mm), which sets it apart from standard multipoint configurations.

The lock comes as a complete one-piece unit with a 2-3/8 inch (60mm) backset and 15/16 inch (24mm) faceplate. This particular model is sized for 80-1/4 inch out-swing door applications, with an overall length of 80-1/4 inches (2038mm) and a handle height of 37 inches (940mm).

The locking mechanism uses a dual-hook system with the top hook pointing down and the bottom hook pointing up. The lower hook is positioned at 30-3/4 inches (781mm) and the upper hook at 38-1/4 inches (972mm). This lock accepts an American cylinder with the key positioned above the handle.

Stamped With

Pat M267300
Some compatible handle sets marked: HPVD

Technical Information

PZ (Handle to Cylinder): 5-1/4 inches (133mm)
Backset: 2-3/8 inches (60mm)
Faceplate Width: 15/16 inch (24mm)
Overall Length: 80-1/4 inches (2038mm)
Handle Height: 37 inches (940mm)
Lower Hook Position: 30-3/4 inches (781mm)
Upper Hook Position: 38-1/4 inches (972mm)
Cylinder Type: American
Handle Position: Key Above Handle
Hook Configuration: Top points down, bottom points up

Notes

This lock is reversible. To change handing: use pliers to firmly grab the latch mechanism, rotate 180°, then slowly release to let the spring pull it back into place.
Available in 8 height configurations: 6-8, 6-11, 7-6, 8-0 in both inswing and outswing applications
Primarily used on fiberglass doors

Sold as a complete one-piece unit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I reverse the handing on this Neuma multipoint lock?

Use pliers to firmly grab the latch mechanism component, rotate it 180 degrees, then slowly release to let the spring pull it back into place.

What type of cylinder does this lock use?

This lock accepts an American cylinder, with the key positioned above the handle.

What doors is this Neuma multipoint lock designed for?

This lock is primarily designed for fiberglass doors and is available in multiple height configurations for both inswing and outswing applications.
