GU Eagle New Breed Multipoint Lock Kit for 8' Doors – 45mm Backset, 92mm PZ, Stainless Steel

GU Eagle New Breed Multipoint Lock Kit for 8' Doors – 45mm Backset, 92mm PZ, Stainless Steel

SKU 6-29586-11-R-SS

$332.55 - $332.55
$332.55
$332.55 - $332.55
$332.55

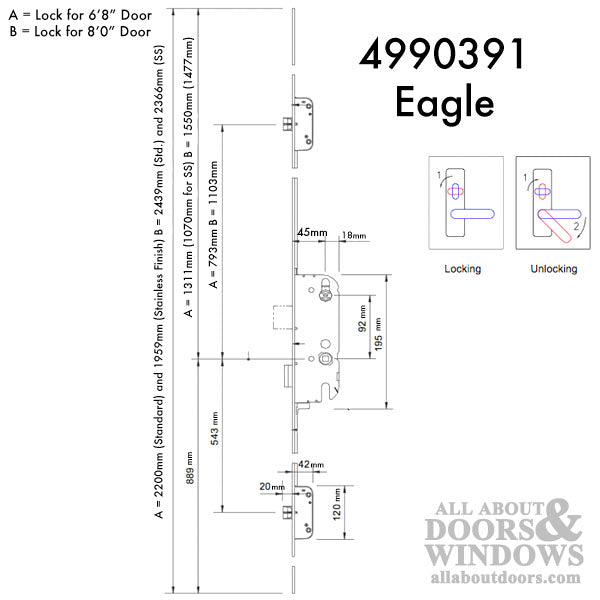

  • PZ: 3-5/8" (92mm)
  • Backset: 1-3/4" (45mm)
  • Faceplate Width: 5/8" (16mm)
  • Faceplate Length: 93-1/8" (2366mm)
  • Handle Height: 35" (889mm)
  • Top Latch Bolt Position: 43-7/16" (1103mm)
  • Bottom Latch Bolt Position: 21-3/8" (543mm)
  • Lock Body Style: New Breed - Key Above Handle
  • Door Height: 8' 0"
  • Finish: Stainless Steel
  • Croppable: Yes - Bottom can be cut down 9-1/2"; Top 13-1/2"
  • 3-point lock with automatic latch bolts that engage when door closes
  • Sold as a complete kit
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

GU Eagle New Breed Multipoint Lock Kit – 8' Door, 45/92, SS (6-29586-11-R-SS)

This GU Eagle New Breed multipoint lock kit is designed for 8-foot doors and features an automatic 3-point locking system. The upper and lower latch bolts automatically engage when the door is closed, providing convenient security without lifting the handle.

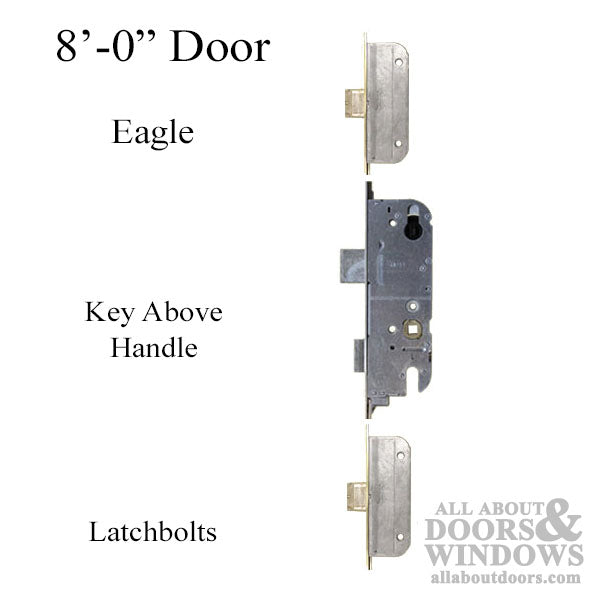

This lock body style is the "New Breed" configuration with the key cylinder positioned above the handle. The kit includes the complete faceplate assembly measuring 93-1/8 inches (2366mm) in length with a 5/8-inch (16mm) width. The handle height is set at 35 inches (889mm) from the bottom of the faceplate.

The faceplate is croppable to accommodate different door sizes. The bottom can be cut down up to 9-1/2 inches and the top can be cut down up to 13-1/2 inches.

Technical Information

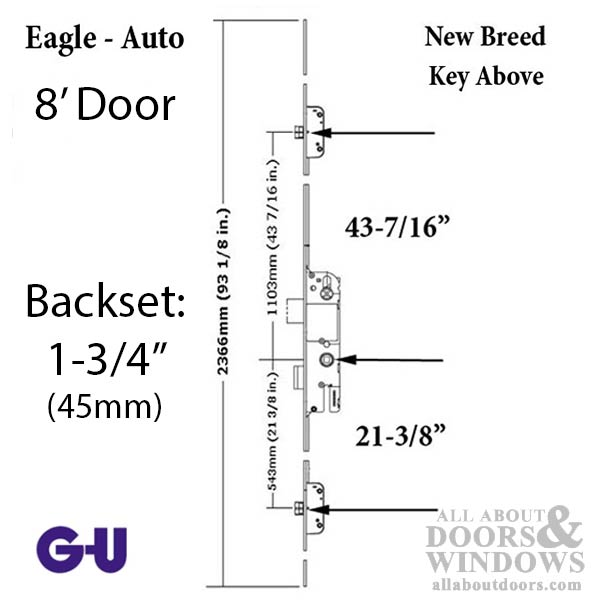

  • Backset: 1-3/4 inches (45mm)
  • PZ (Handle to Cylinder Center): 3-5/8 inches (92mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Faceplate Length: 93-1/8 inches (2366mm)
  • Handle Height: 35 inches (889mm)
  • Top Latch Bolt Position: 43-7/16 inches (1103mm)
  • Bottom Latch Bolt Position: 21-3/8 inches (543mm)
  • Finish: Stainless Steel
  • Original Manufacturer SKU: 6-29586-11-R-8

Notes

  • Lock body style: New Breed - Key Above Handle
  • Automatic function: Latch bolts engage automatically when door closes
  • Door is not locked until thumb turn or key is engaged
  • Handle does not need to be lifted on this style of lock
  • Can be rehanded - see instructions for center latch and top/bottom latch rehanding procedures

Sold as a complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How does the automatic latch function work on this lock?

When the door closes, the top and bottom latch bolts automatically extend to hold the door in place. However, the door is not fully locked until you turn the thumb turn or key to engage the deadbolt.

Can I change the handing on this multipoint lock?

Yes, the lock can be rehanded. For the center latch, remove the 3 T-25 star screws and flip the latch. For the top and bottom latches, insert a 3/16 hex screwdriver into the hole on the backside, unscrew counterclockwise, remove, spin around, and reattach.

Can this lock be cut down for a shorter door?

Yes, the faceplate is croppable. The bottom can be cut down up to 9-1/2 inches and the top can be cut down up to 13-1/2 inches to fit shorter doors.
