GU Mortise Lock with Cylinder Bore – 35mm Backset, 200mm PZ

GU Mortise Lock with Cylinder Bore – 35mm Backset, 200mm PZ

SKU 6-25918-35-0-FG

$89.44 - $89.44
$89.44
$89.44 - $89.44
$89.44
  • PZ: 7-7/8" (200mm)

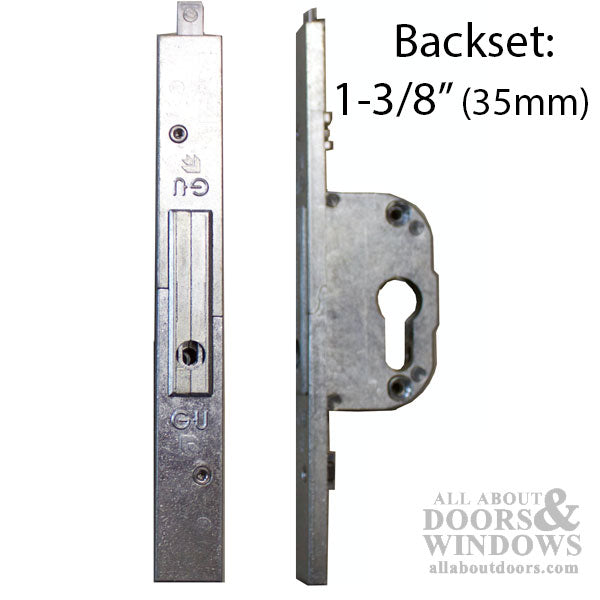

  • Backset: 1-3/8" (35mm)
  • Faceplate Width: 15/16" (24mm)
  • Faceplate Height: 7-7/8" (200mm)
  • Mortise lock with cylinder bore
  • Compatible with G-U / Ferco hardware
  • Designed for 2-5/8" thick aluminum terrace doors
  • G-U Part Number: 6-25918-35-0-1
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

GU Mortise Lock – 35/200 (6-25918-35-0-FG)

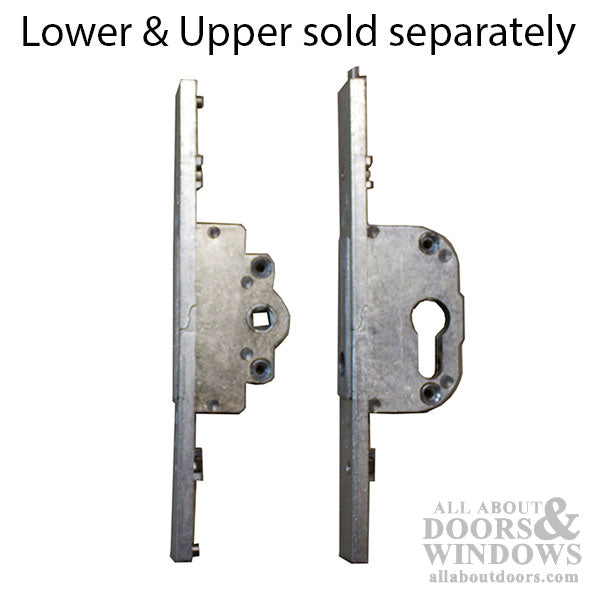

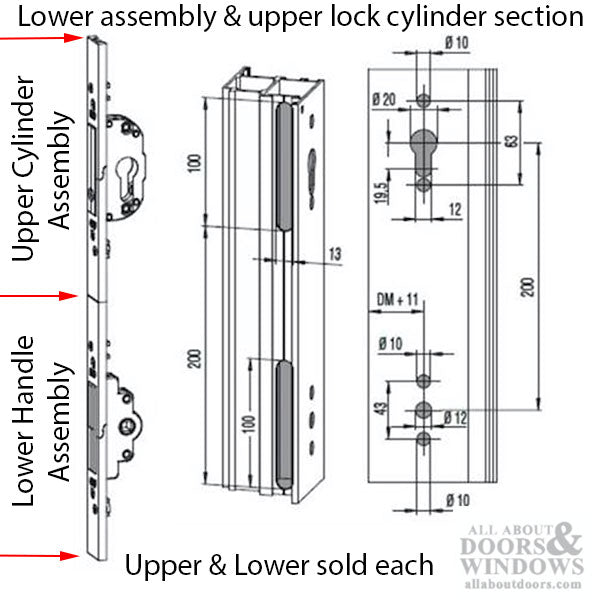

This GU mortise lock with cylinder bore is designed for use with G-U / Ferco hardware systems on aluminum terrace doors. It features a 1-3/8 inch (35mm) backset and a 7-7/8 inch (200mm) PZ measurement, making it suitable for specific multipoint lock configurations.

The lock is engineered for 2-5/8 inch thick aluminum terrace doors and includes a faceplate measuring 15/16 inches (24mm) wide by 7-7/8 inches (200mm) tall.

Technical Information

  • PZ (Handle to Cylinder Center): 7-7/8 inches (200mm)
  • Backset: 1-3/8 inches (35mm)
  • Faceplate Width: 15/16 inches (24mm)
  • Faceplate Height: 7-7/8 inches (200mm)
  • Door Thickness: 2-5/8 inches
  • Original Manufacturer SKU: 6-25918-35-0-1

Notes

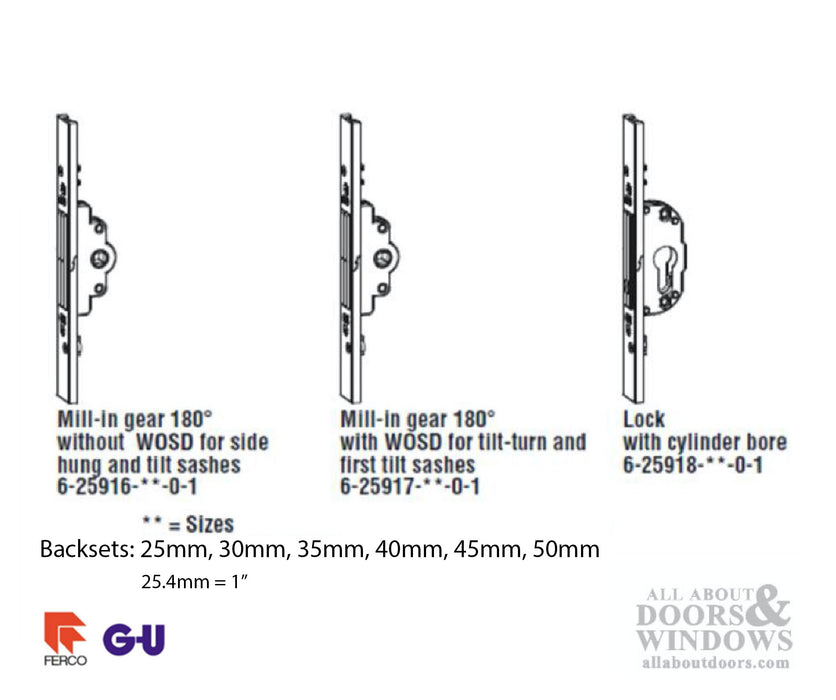

  • Available backset options in this series: 25mm, 30mm, 35mm, 40mm, 45mm, 50mm
  • Compatible with G-U / Ferco hardware systems

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the PZ measurement and why is it important?

PZ refers to the distance from the center of the handle to the center of the cylinder bore. For this lock, the PZ is 200mm (7-7/8 inches), which must match your existing door preparation.

Will this lock work with my aluminum terrace door?

This lock is designed specifically for 2-5/8 inch thick aluminum terrace doors using G-U / Ferco hardware systems. Verify your door thickness and hardware brand before ordering.

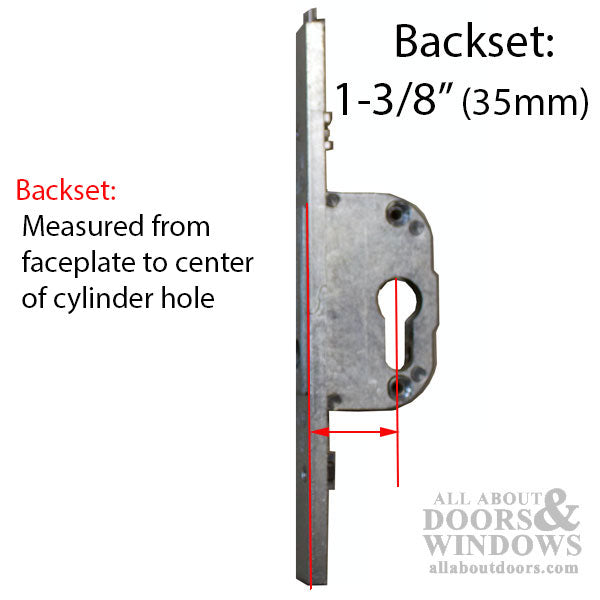

How do I measure the backset on my door?

Measure from the edge of the door to the center of the handle bore hole. This lock has a 35mm (1-3/8 inch) backset.
