G-U Venice Active Handleset Trim – 45mm Backset, 92mm PZ

G-U Venice Active Handleset Trim – 45mm Backset, 92mm PZ

SKU

$126.76 - $159.72
$126.76
$126.76 - $159.72
$126.76
  • PZ: 3-5/8" (92mm)
  • Backset: 45mm
  • Escutcheon Plate Height: 9" (228.6mm)
  • Escutcheon Plate Width: 1-3/4" (44.5mm)
  • Screw Hole Center: 7-11/16" (195.3mm)

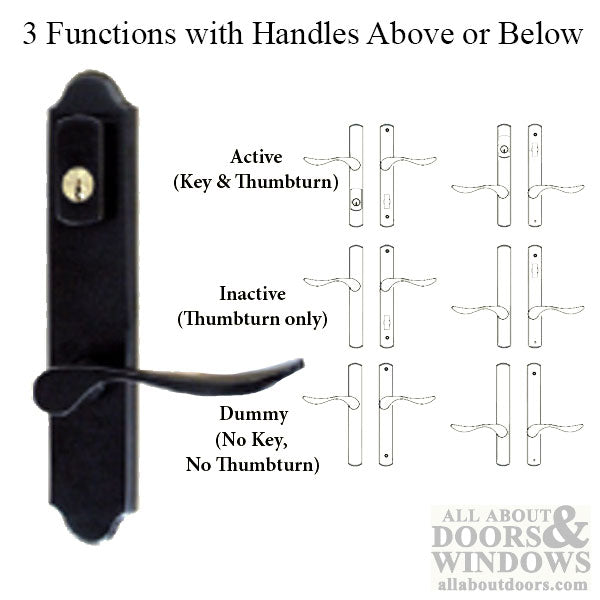

  • Function: Active – Keyed American Cylinder with inside thumb turn
  • Key/Thumb Turn Position: Above
  • Cylinder: American (Schlage 5 Pin SC1)
  • Handle Style: Venice

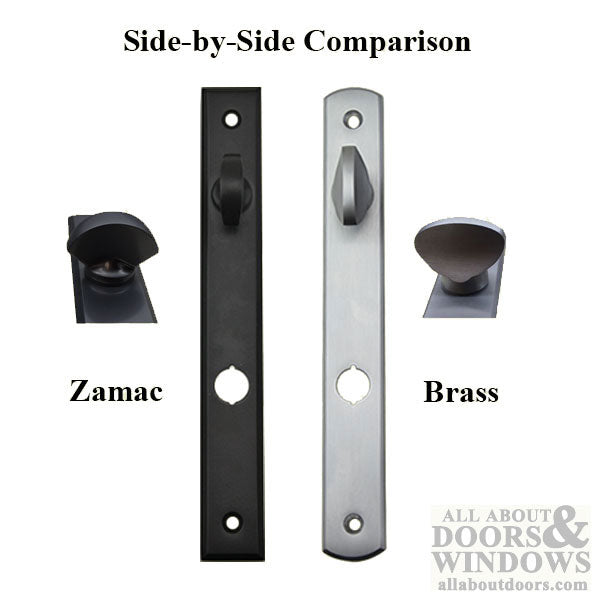

  • Material: Zamac
  • Handing: Non-Handed

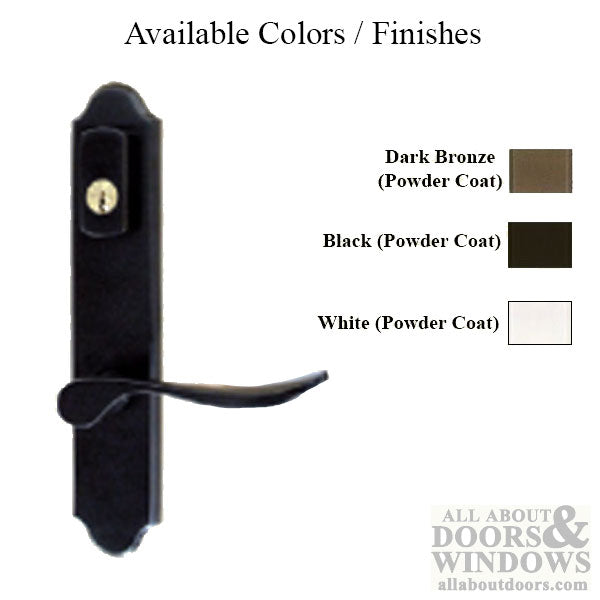

  • Colors Available: Dark Bronze, Black, White (Powder Coat)
  • Compatible with G-U Tripact, Europa, Cremona, and Secury Automatic door gears
  • Special order item – 2 to 4 weeks delivery
  • No returns, refunds, or exchanges
  • Priced and sold as a package
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

G-U Venice Active Handleset – 45/92 (K-U7692-Z1-0-ACTB)

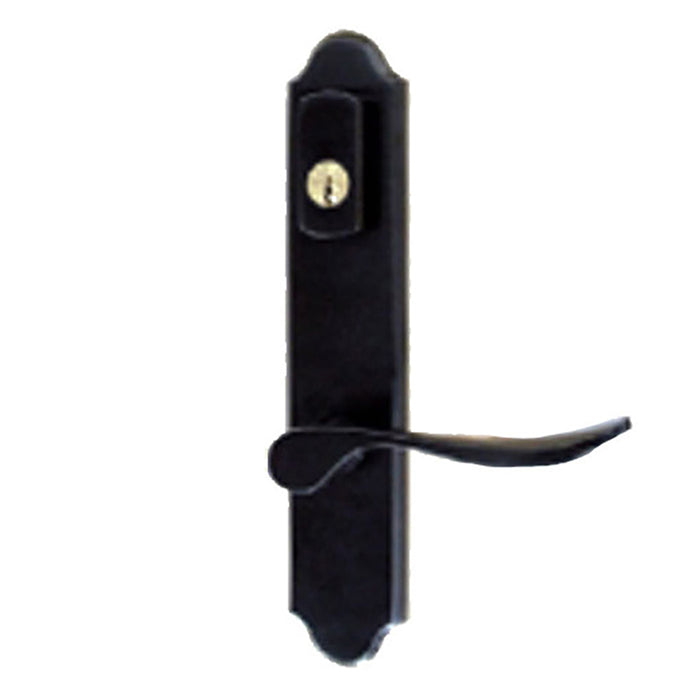

The G-U Venice Collection Active Handleset Trim provides a stylish and functional solution for multipoint lock doors. This keyed entry set features an American cylinder with an inside thumb turn, with the key and thumb turn positioned above the handle for convenient access.

Designed for use with G-U manufactured mortise locks including Tripact, Europa, Cremona, and Secury Automatic door gears. The Venice handle style offers an elegant aesthetic in your choice of three powder coat finishes: Dark Bronze, Black, or White.

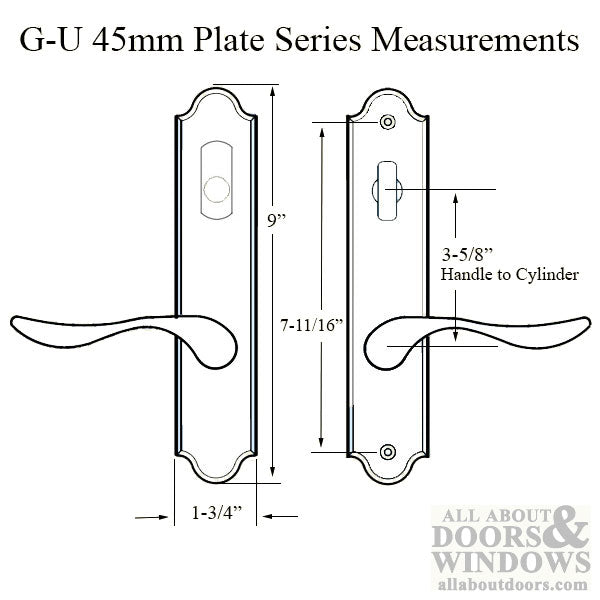

This handleset features a 45mm backset plate series with a 92mm PZ (handle center to cylinder center). The escutcheon plate measures 9 inches tall by 1-3/4 inches wide, with a screw hole center distance of 7-11/16 inches. Constructed from durable Zamac material and designed as non-handed for versatile installation.

Technical Information

  • PZ: 92mm (3-5/8 inches)
  • Backset: 45mm
  • Escutcheon Plate Height: 9 inches (228.6mm)
  • Escutcheon Plate Width: 1-3/4 inches (44.5mm)
  • Screw Hole Center: 7-11/16 inches (195.3mm)
  • Function: Active – Keyed American Cylinder with inside thumb turn
  • Key/Thumb Turn Position: Above
  • Cylinder Version: American
  • Keyway: Schlage 5 Pin SC1
  • Handle Style: Venice
  • Material: Zamac
  • Handing: Non-Handed

Notes

  • Available finishes: Dark Bronze (Powder Coat), Black (Powder Coat), White (Powder Coat)
  • Special order item – delivery may take 2 to 4 weeks
  • No returns, refunds, or exchanges on this product

Replaces / Replaced by

  • Replaces G-U Belissimo 4100 and 5100 series collection

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What G-U lock systems is this handleset compatible with?

This Venice handleset is compatible with G-U Tripact, Europa, Cremona, and Secury Automatic door gears.

What does PZ mean on this handleset?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This handleset has a 92mm PZ measurement.

Can I return this handleset if it doesn't fit?

No, this is a special order item with no returns, refunds, or exchanges. Please verify your measurements and compatibility before ordering.
