G-U Venice Inactive Handleset Trim – 45mm Backset, 92mm PZ

G-U Venice Inactive Handleset Trim – 45mm Backset, 92mm PZ

SKU

$104.43 - $162.56
$104.43
$104.43 - $162.56
$104.43
  • Function: Inactive (non-keyed) with inside thumb turn
  • PZ: 92mm (3-5/8")
  • Backset: 45mm

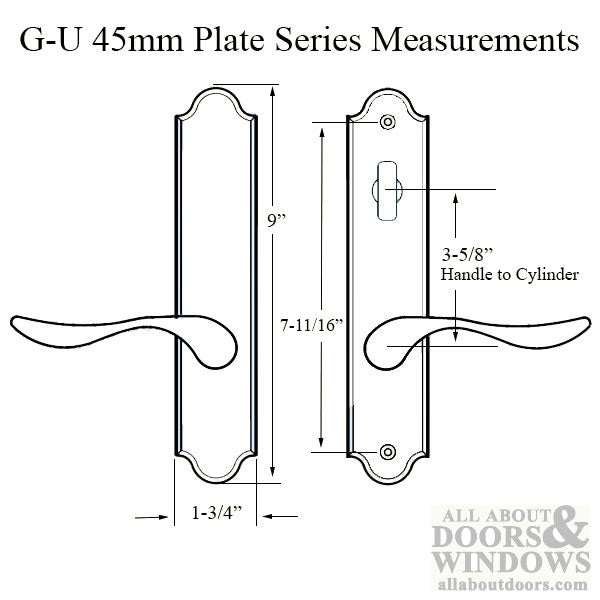

  • Escutcheon Plate Height: 9" (228.6mm)
  • Escutcheon Plate Width: 1-3/4" (44.5mm)
  • Screw Hole Center: 7-11/16" (195.3mm)

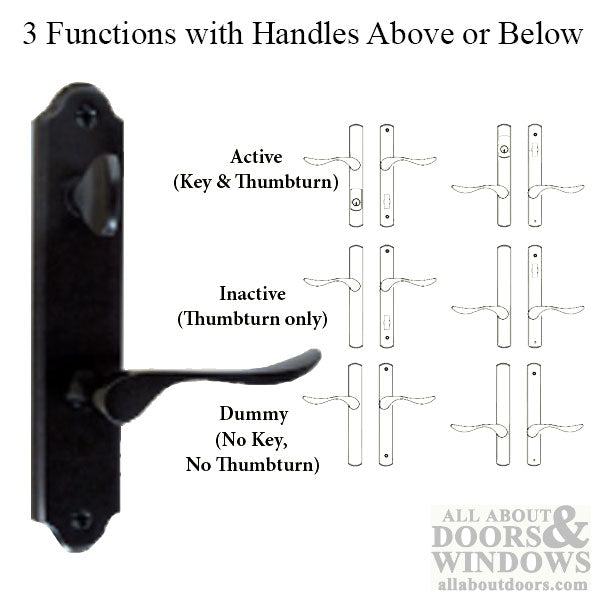

  • Key/Thumb Turn Position: Above or below handle
  • Handle Style: Venice

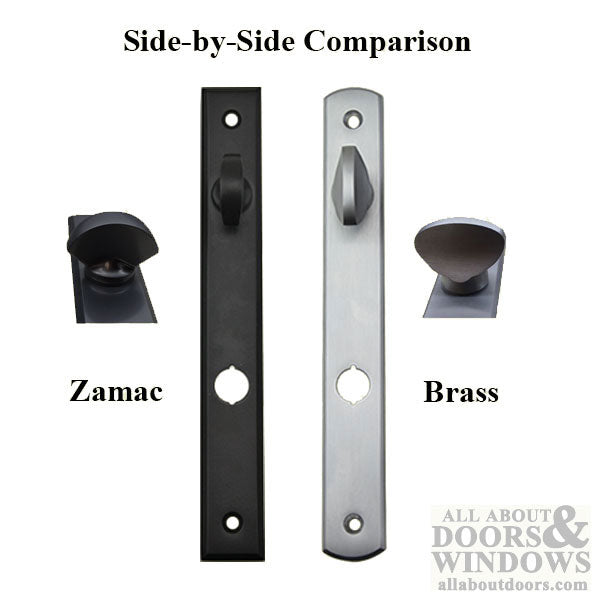

  • Material: Zamac
  • Handing: Non-handed
  • Finish Options: Dark Bronze, Black, or White (powder coat)
  • Compatible with G-U Tripact, Europa, Cremona, and Secury Automatic door gears
  • Special order item – 2 to 4 weeks delivery
  • No returns, refunds, or exchanges
  • Priced and sold as a package
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

G-U Venice Inactive Handleset Trim – 45/92 (K-U7646-Z0-0-INA)

The G-U Venice Collection handleset trim offers a stylish inactive (non-keyed) configuration with an interior thumb turn. This trim is part of G-U's Venice series, designed to replace the discontinued Belissimo 4100 and 5100 series collection.

This inactive handleset features a 45mm backset and 92mm PZ (handle center to cylinder center), making it compatible with G-U manufactured mortise locks including the Tripact, Europa, Cremona, and Secury Automatic door gears. The escutcheon plate measures 9 inches tall by 1-3/4 inches wide, with a screw hole center of 7-11/16 inches.

Constructed from durable Zamac material with a powder coat finish, this non-handed trim is available in three color options: Dark Bronze, Black, or White. The key/thumb turn position can be installed either above or below the handle to suit your door configuration.

Technical Information

  • Function: Inactive (non-keyed) with inside thumb turn
  • PZ: 92mm (3-5/8 inches)
  • Backset: 45mm
  • Escutcheon Plate Height: 9 inches (228.6mm)
  • Escutcheon Plate Width: 1-3/4 inches (44.5mm)
  • Screw Hole Center: 7-11/16 inches (195.3mm)
  • Material: Zamac
  • Handing: Non-handed
  • Plate Series: G-U 45mm

Notes

  • Special order item – allow 2 to 4 weeks for delivery
  • No returns, refunds, or exchanges on this product
  • Available finishes: Dark Bronze (Powder Coat), Black (Powder Coat), White (Powder Coat)

Replaces / Replaced by

  • Replaces the G-U Belissimo 4100 and 5100 series collection

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What G-U lock systems is this Venice trim compatible with?

This trim is compatible with G-U manufactured mortise locks including the Tripact, Europa, Cremona, and Secury Automatic door gears.

Can the thumb turn be positioned above or below the handle?

Yes, the key/thumb turn position can be installed either above or below the handle depending on your preference and door configuration.

What series does this Venice trim replace?

The Venice series replaces the discontinued G-U Belissimo 4100 and 5100 series collection.
