G-U Venice Inactive Handleset Trim – 45mm Plate Series, 92mm PZ

G-U Venice Inactive Handleset Trim – 45mm Plate Series, 92mm PZ

SKU

$200.48 - $308.78
$200.48
$200.48 - $308.78
$200.48
  • PZ: 3-5/8" (92mm)
  • Plate Series: G-U 45mm
  • Escutcheon Plate Height: 9" (228.6mm)
  • Escutcheon Plate Width: 1-3/4" (44.5mm)
  • Screw Hole Center: 7-11/16" (195.3mm)
  • Key/Thumb Turn Position: Above or Below
  • Function: Inactive - Non-keyed with inside thumb turn
  • Handle Style: Venice
  • Material: Brass
  • Handing: Non-Handed
  • Available Finishes: Brushed/Satin Chrome, Polished Brass, Antique Brass, Oil Rubbed Bronze, Brushed/Satin Nickel, Dark Bronze, Pewter (Antique Nickel)
  • Compatible with G-U Tripact, Europa, Cremona, and Secury Automatic door gears
  • Special order item - 2 to 4 weeks delivery
  • No returns, refunds, or exchanges
  • Priced and sold as a package
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

G-U Venice Inactive Handleset Trim – 92mm PZ (K-U6646-00-0-INA)

The G-U Venice Collection Multipoint Lock Hardware Trim offers an elegant inactive handleset solution for multipoint door systems. This non-keyed trim features an inside thumb turn and is designed for use with G-U manufactured mortise locks including Tripact, Europa, Cremona, and Secury Automatic door gears.

The Venice handle style is crafted from brass and features a non-handed design for versatile installation. The escutcheon plate measures 9 inches tall by 1-3/4 inches wide, with a screw hole center of 7-11/16 inches. The key/thumb turn position can be installed above or below the handle to suit your door configuration.

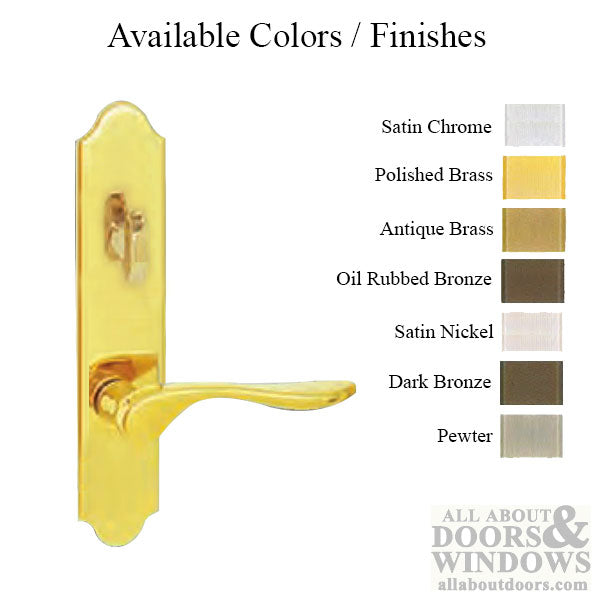

This trim is available in seven finish options: Brushed/Satin Chrome, Polished Brass, Antique Brass, Oil Rubbed Bronze, Brushed/Satin Nickel, Dark Bronze, and Pewter (Antique Nickel). Select your preferred finish from the drop-down menu.

Technical Information

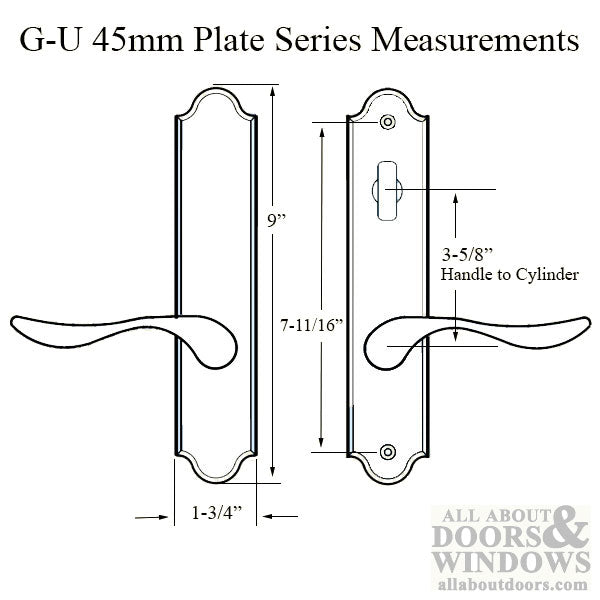

  • PZ (Handle Center to Cylinder Center): 3-5/8 inches (92mm)
  • Plate Series: G-U 45mm
  • Escutcheon Plate Height: 9 inches (228.6mm)
  • Escutcheon Plate Width: 1-3/4 inches (44.5mm)
  • Screw Hole Center: 7-11/16 inches (195.3mm)
  • Function: Inactive - Non-keyed with inside thumb turn
  • Handle Style: Venice
  • Material: Brass
  • Handing: Non-Handed

Notes

  • Special order item - delivery may take 2 to 4 weeks
  • No returns, refunds, or exchanges on this product

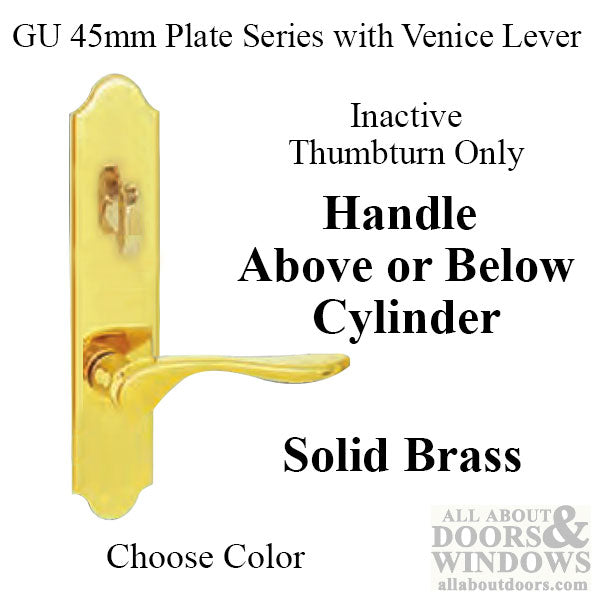

  • Key/thumb turn can be positioned above or below the handle

Replaces / Replaced by

  • Replaces the G-U Belissimo 4100 and 5100 series collection

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What G-U lock systems is this trim compatible with?

This Venice trim is compatible with G-U manufactured mortise locks including Tripact, Europa, Cremona, and Secury Automatic door gears.

Can the thumb turn be installed above or below the handle?

Yes, the key/thumb turn position can be installed either above or below the handle to accommodate your door configuration.

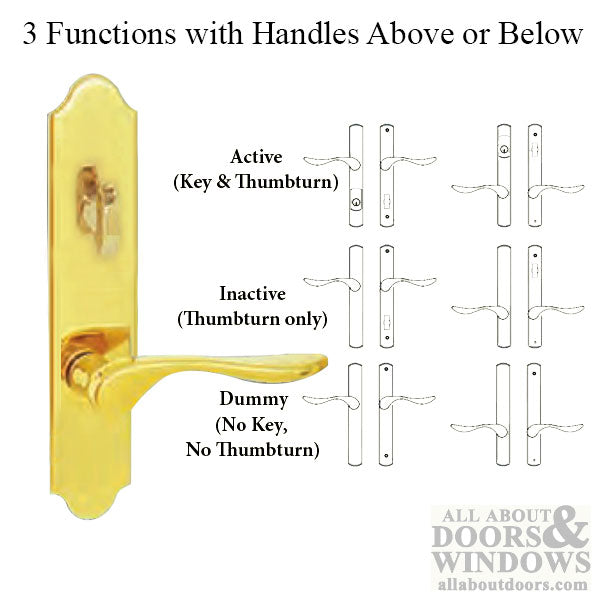

What does 'inactive' mean for this handleset?

Inactive means this trim is non-keyed and does not include a cylinder. It features an inside thumb turn for locking and is typically used on the inactive leaf of a double door or where exterior keyed access is not required.
