G-U Venice Handleset Trim – 92mm PZ, Active Function

G-U Venice Handleset Trim – 92mm PZ, Active Function

SKU

$210.49 - $279.65
$210.49
$210.49 - $279.65
$210.49

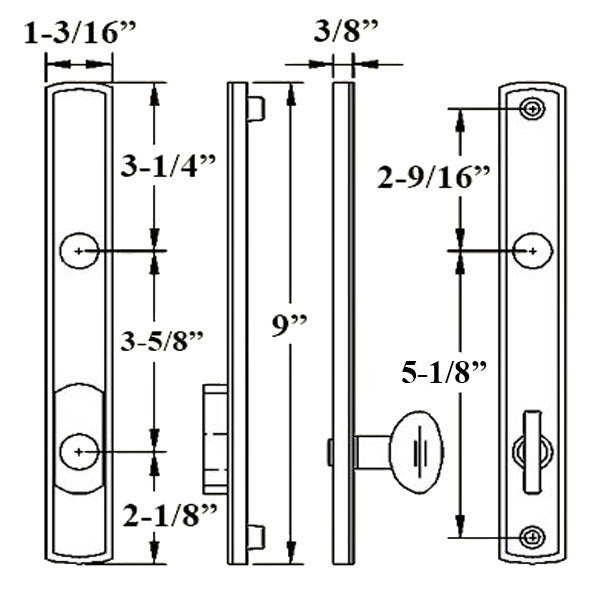

  • PZ: 3-5/8" (92mm)
  • Plate Series: G-U 30mm
  • Escutcheon Plate Height: 9" (228.6mm)
  • Escutcheon Plate Width: 1-3/16" (30.2mm)
  • Screw Hole Center: 7-11/16" (195.3mm)

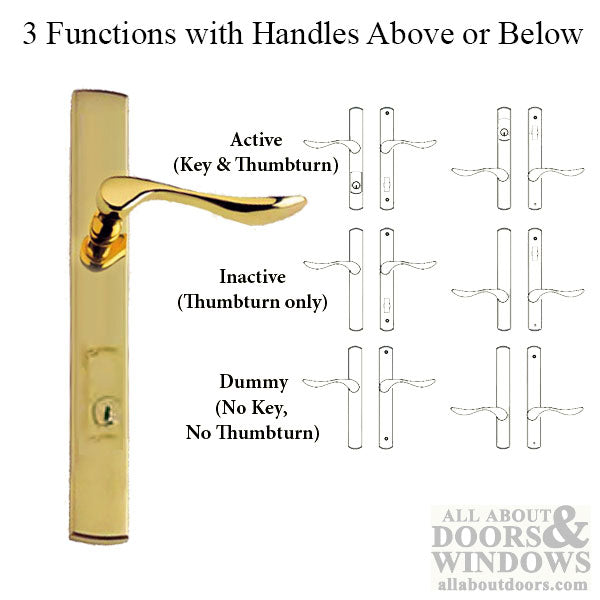

  • Function: Active – Keyed American Cylinder with inside thumb turn
  • Key/Thumb Turn Position: Below
  • Keyway: Schlage 5 Pin SC1
  • Material: Brass
  • Handing: Non-Handed
  • Compatible Locks: Tripact, Europa, Cremona, and Secury Automatic door gears
  • Special order item – 2 to 4 weeks for delivery
  • No returns, refunds, or exchanges
  • Priced and sold as a package
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

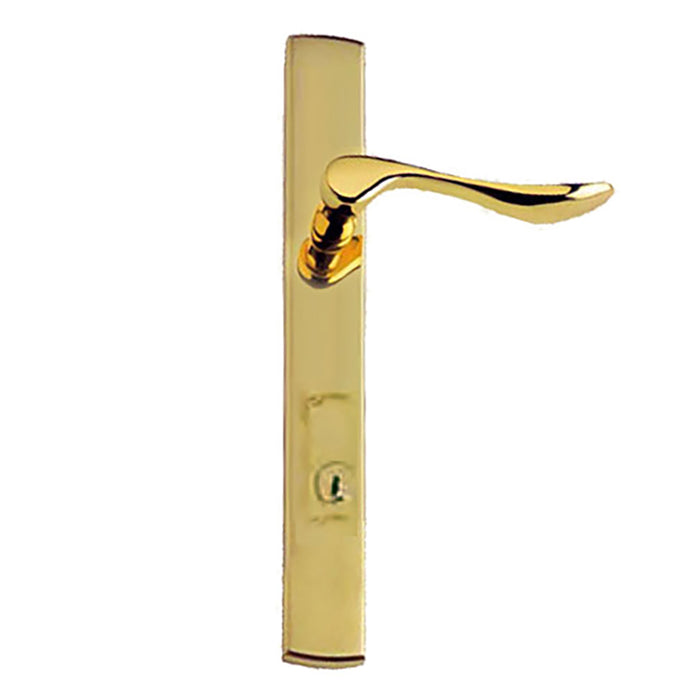

G-U Venice Handleset Trim – 92mm PZ, Active (K-U3692-00-0-ACTA)

The G-U Venice Collection Handleset Trim brings elegant European styling to your multipoint lock door. This active function trim set features a keyed American cylinder on the exterior with an interior thumb turn, providing secure and convenient operation for your entry door.

Designed for use with G-U manufactured mortise locks including the Tripact, Europa, Cremona, and Secury Automatic door gears. The Venice handle style offers a refined aesthetic that complements both traditional and contemporary door designs.

This trim set features a 92mm PZ (handle center to cylinder center) measurement and is compatible with G-U 30mm plate series hardware. The non-handed design simplifies ordering and installation, working on both left and right-hand doors without modification.

Technical Information

  • PZ: 3-5/8 inches (92mm)
  • Plate Series: G-U 30mm
  • Escutcheon Plate Height: 9 inches (228.6mm)
  • Escutcheon Plate Width: 1-3/16 inches (30.2mm)
  • Screw Hole Center: 7-11/16 inches (195.3mm)
  • Function: Active – Keyed American Cylinder with inside thumb turn
  • Key/Thumb Turn Position: Below
  • Keyway: Schlage 5 Pin SC1
  • Cylinder Version: American

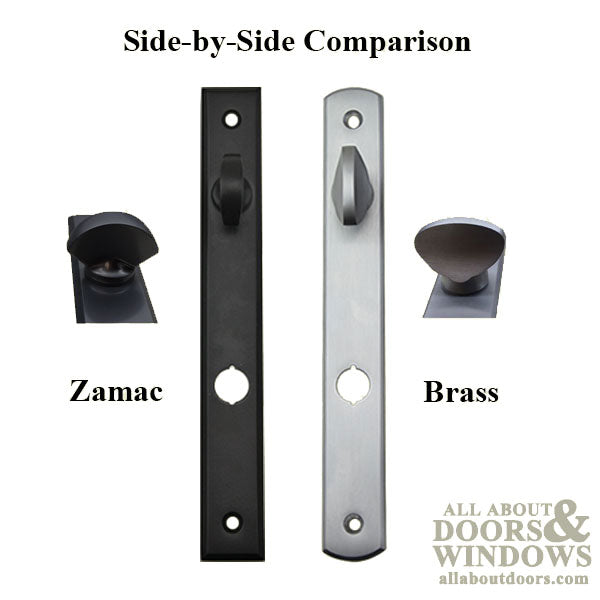

  • Material: Brass
  • Handing: Non-Handed

Notes

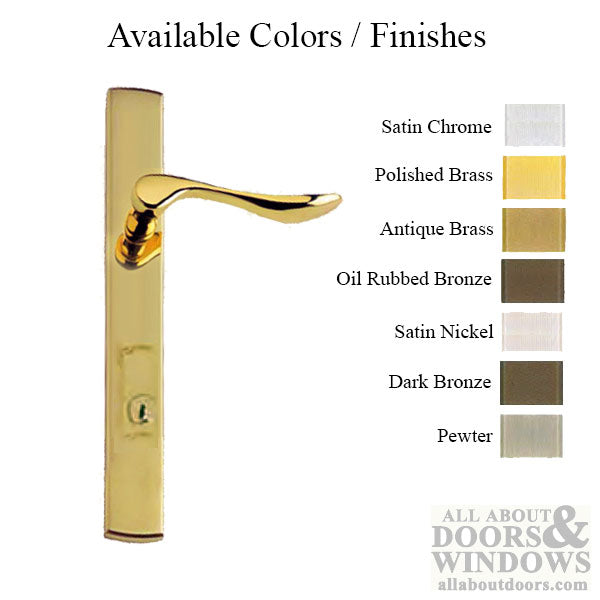

  • Available finishes: Brushed/Satin Chrome, Polished Brass, Antique Brass, Oil Rubbed Bronze, Brushed/Satin Nickel, Dark Bronze, Pewter (Antique Nickel)
  • Compatible with G-U Tripact, Europa, Cremona, and Secury Automatic door gears
  • Special order item – please allow 2 to 4 weeks for delivery
  • No returns, refunds, or exchanges on this item

Replaces / Replaced by

  • Replaces the G-U Belissimo 4100 and 5100 series collection

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What locks is this Venice handleset compatible with?

This handleset is designed for use with G-U manufactured mortise locks including the Tripact, Europa, Cremona, and Secury Automatic door gears.

What does PZ mean and how do I measure it?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This handleset has a 92mm PZ measurement.

Is this handleset handed for left or right doors?

No, this is a non-handed design that works on both left-hand and right-hand doors without modification.
