G-U Allegro Handleset Trim – 92mm PZ, Active Function

G-U Allegro Handleset Trim – 92mm PZ, Active Function

SKU

$238.56 - $328.20
$238.56
$238.56 - $328.20
$238.56
  • PZ: 3-5/8" (92mm)
  • Plate Series: G-U 30mm
  • Escutcheon Plate Height: 9" (228.6mm)
  • Escutcheon Plate Width: 1-3/16" (30.2mm)
  • Screw Hole Center: 7-11/16" (195.3mm)
  • Function: Active – Keyed American Cylinder with inside thumb turn
  • Key/Thumb Turn Position: Above handle
  • Keyway: Schlage 5-Pin SC1
  • Material: Brass
  • Handing: Non-handed

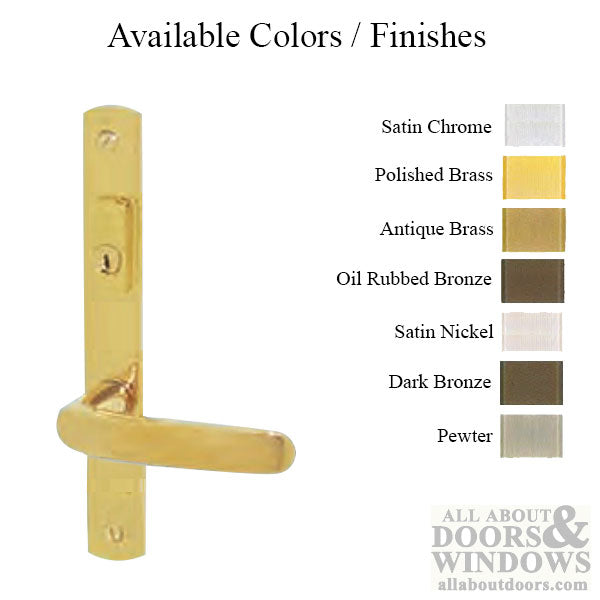

  • Available Finishes: Brushed/Satin Chrome, Polished Brass, Antique Brass, Oil Rubbed Bronze, Brushed/Satin Nickel, Dark Bronze, Pewter (Antique Nickel)
  • Priced and sold as a package
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

G-U Allegro Handleset Trim – 92mm PZ, Active (K-U3192-01-0-ACTB)

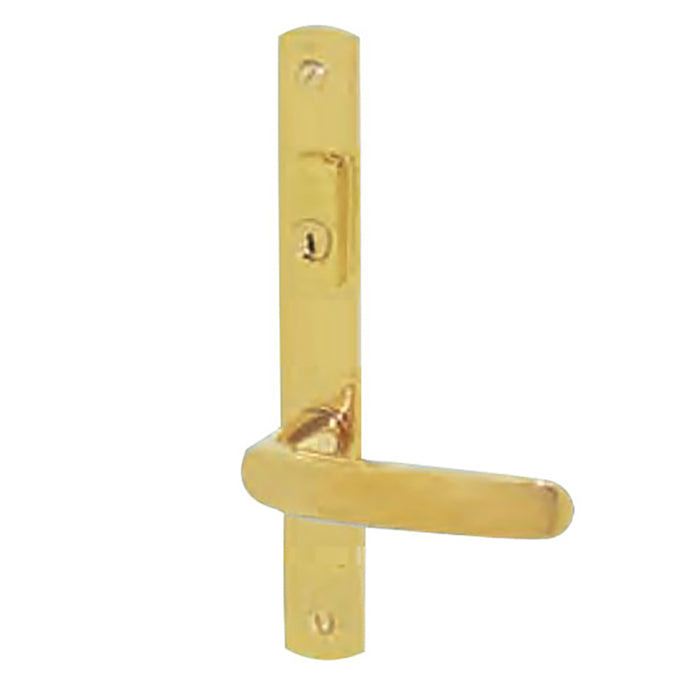

The G-U Allegro Collection handleset trim offers a stylish and functional solution for multipoint lock doors. This active function trim features a keyed American cylinder on the exterior with an interior thumb turn, providing convenient keyless exit from inside your home.

Designed for use with G-U manufactured mortise locks including the Tripact, Europa, Cremona, and Secury Automatic door gears. The Allegro series replaces the discontinued Belissimo 4100 and 5100 series collection, offering updated styling with the same reliable G-U quality.

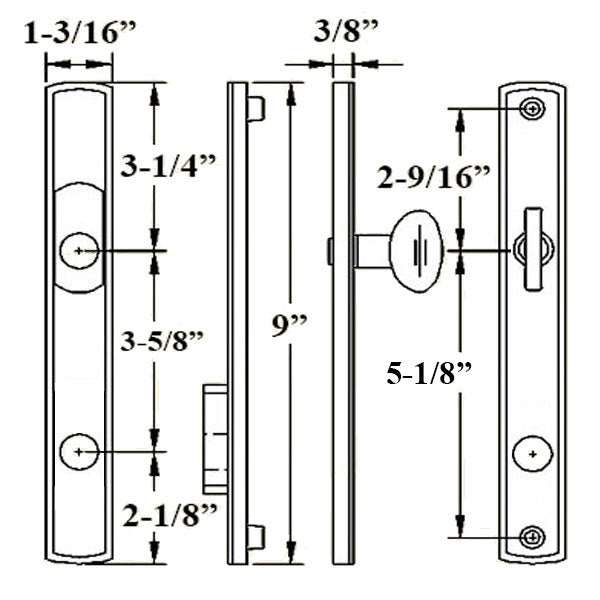

The escutcheon plate measures 9 inches (228.6mm) tall by 1-3/16 inches (30.2mm) wide, with a screw hole center of 7-11/16 inches (195.3mm). The 92mm PZ spacing and G-U 30mm plate series ensure compatibility with standard G-U multipoint lock configurations. Constructed from solid brass with a non-handed design for versatile installation.

Technical Information

  • PZ: 92mm (3-5/8 inches)
  • Plate Series: G-U 30mm
  • Escutcheon Plate Height: 9 inches (228.6mm)
  • Escutcheon Plate Width: 1-3/16 inches (30.2mm)
  • Screw Hole Center: 7-11/16 inches (195.3mm)
  • Cylinder Version: American
  • Keyway: Schlage 5-Pin SC1
  • Key/Thumb Turn Position: Above Handle
  • Material: Brass
  • Handing: Non-Handed

Notes

  • Available in 7 finishes: Brushed/Satin Chrome, Polished Brass, Antique Brass, Oil Rubbed Bronze, Brushed/Satin Nickel, Dark Bronze, and Pewter (Antique Nickel)
  • Compatible with G-U Tripact, Europa, Cremona, and Secury Automatic door gears
  • Special order item – delivery may take 2 to 4 weeks
  • No returns, refunds, or exchanges

Replaces / Replaced by

  • Replaces G-U Belissimo 4100 and 5100 series collection

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What G-U locks is this handleset compatible with?

This Allegro handleset trim is designed for use with G-U Tripact, Europa, Cremona, and Secury Automatic door gears.

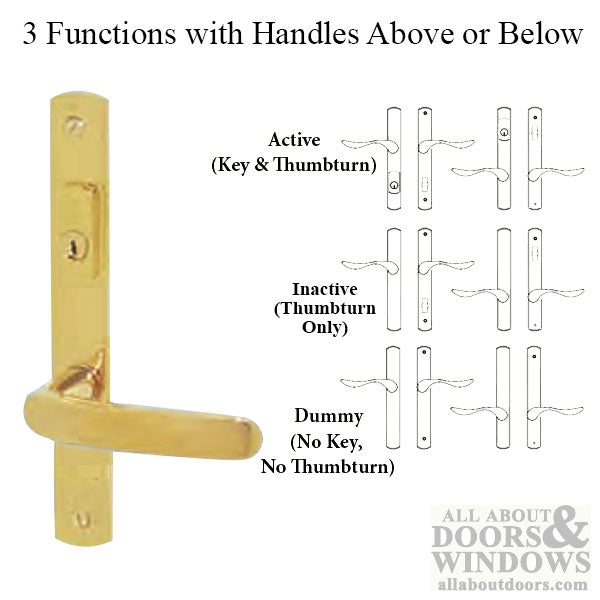

What does 'Active' function mean for this handleset?

Active function means the exterior side has a keyed cylinder for locking and unlocking, while the interior has a thumb turn for convenient keyless exit.

Can I return this handleset if it doesn't fit?

No, this is a special order item with no returns, refunds, or exchanges. Please contact us before ordering to verify compatibility with your door.
