Andersen Albany Double Active Hinged Door Hardware – Black

Andersen Albany Double Active Hinged Door Hardware – Black

SKU 9007553

$308.28 - $308.28
$308.28
$308.28 - $308.28
$308.28
  • Style: Albany (Double Active/Passive)
  • Color: Black
  • PZ (Handle to Thumbturn): 4-1/8" (105mm)
  • Escutcheon Length: 10" (254mm)
  • Escutcheon Width: 1-5/8" (41.3mm)
  • Handle Length: 5-1/4" (133.4mm)
  • Neck: 2-1/8" (54mm)
  • Screw Hole Spacing: 8-1/2" (216mm)
  • For Andersen 400 Series Frenchwood Hinged Patio Doors (1988–Present)
  • Works on both in-swing and out-swing configurations
  • Includes inside and outside handles, escutcheon plates, thumb latch lock, mounting hardware, and installation instructions
  • Exterior keyed lock (9007623) sold separately
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

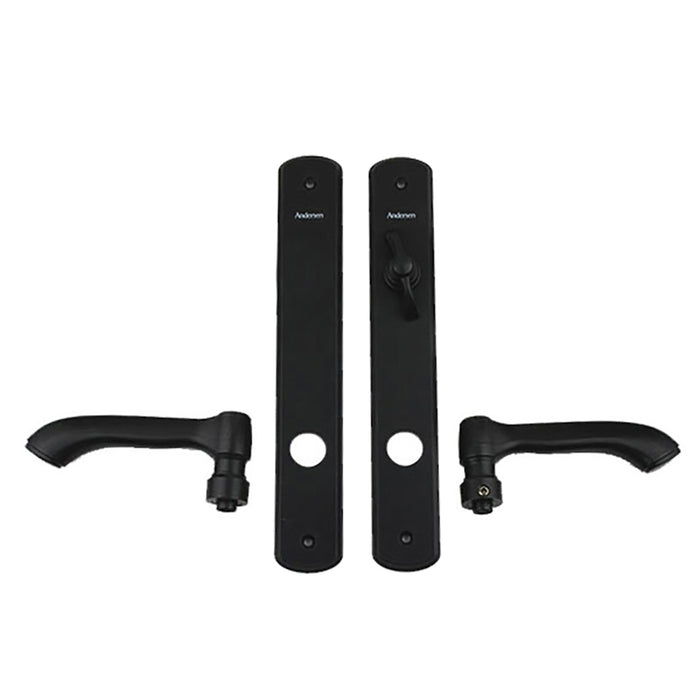

Andersen Albany Double Active Door Hardware – Black (9007553)

This Andersen Albany Style hardware set is designed for double active (or active/passive) hinged patio door configurations in black finish. It is compatible with Andersen 400 Series Frenchwood Hinged Patio Doors manufactured from 1988 to present, including both in-swing and out-swing models.

The double active configuration means both door panels can open, with this set providing hardware for both the active and passive door panels. The Albany style features a classic design that complements a variety of home aesthetics.

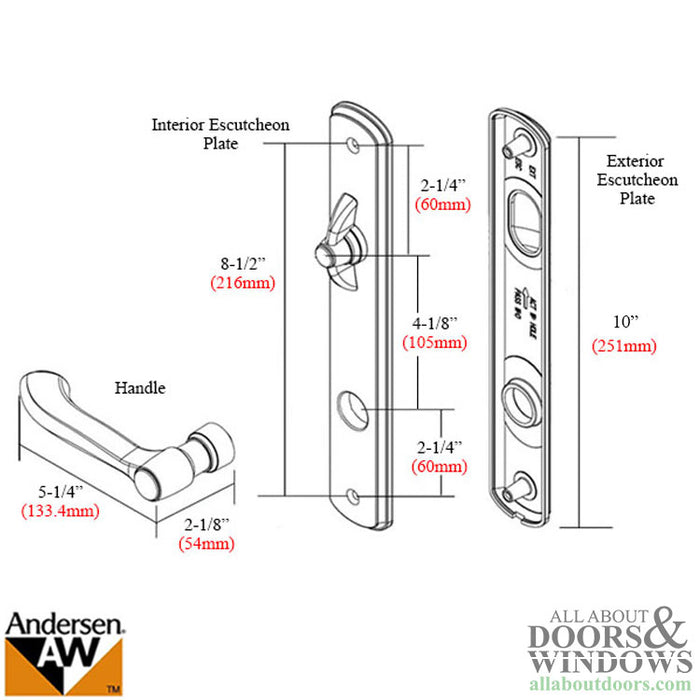

Technical Information

  • Escutcheon Width: 1-5/8 inches (41.3mm)
  • Escutcheon Length: 10 inches (254mm)
  • PZ (Center of Handle to Center of Thumbturn): 4-1/8 inches (105mm)
  • Neck: 2-1/8 inches (54mm)
  • Handle Length: 5-1/4 inches (133.4mm)
  • Top Screw Hole to Bottom Screw Hole: 8-1/2 inches (216mm)
  • Top Screw Hole to Thumbturn: 2-1/4 inches (60mm)
  • Thumbturn to Handle: 4-1/8 inches (105mm)
  • Handle to Bottom Screw: 2-1/4 inches (60mm)

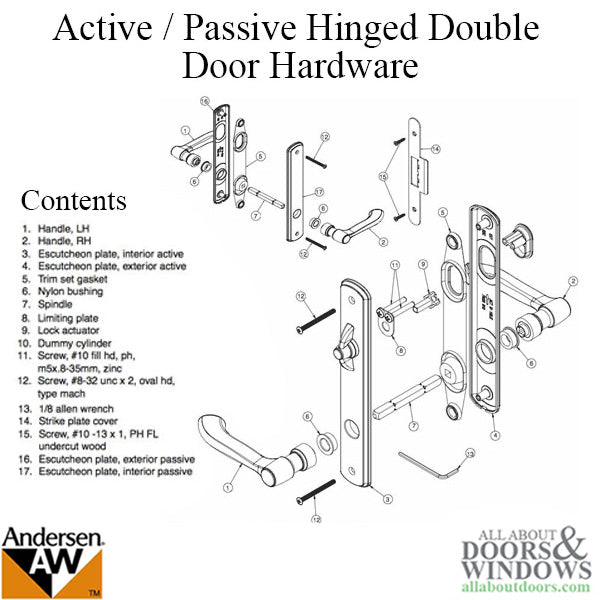

Contents

  • Inside and outside handles
  • Inside and outside escutcheon plates
  • Inside thumb latch lock
  • Mounting studs and bolts
  • Gasket
  • Spindle
  • Set screws and bushings
  • Installation instructions

Notes

  • Exterior keyed lock (9007623) is sold separately for lock/unlock functionality from outside with a key
  • For double active hinged door configurations where both doors open

Related Parts

  • 9007546 - Albany Active Single Hinged Door Hardware - White
  • 9007547 - Albany Active Single Hinged Door Hardware - Stone
  • 9007548 - Albany Active Single Hinged Door Hardware - Gold Dust
  • 9007549 - Albany Active Single Hinged Door Hardware - Black
  • 9007550 - Albany Active Style Double Hinged Door Hardware - White
  • 9007551 - Albany Active Style Double Hinged Door Hardware - Stone
  • 9007552 - Albany Active Style Double Hinged Door Hardware - Gold Dust
  • 9007623 - Exterior Keyed Lock

Priced and sold as a complete set.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between single active and double active hardware?

Single active hardware is for doors where only one panel opens, while double active hardware is designed for configurations where both door panels can open.

Does this hardware set include a keyed lock?

No, the exterior keyed lock (part 9007623) is sold separately. This set includes a thumb latch lock for interior locking only.

Will this work with my Andersen Frenchwood door?

This hardware is compatible with Andersen 400 Series Frenchwood Hinged Patio Doors (both in-swing and out-swing) manufactured from 1988 to present.
