Andersen Albany Double Active Hinged Door Hardware Set – White

SKU 9007550

$298.17 - $298.17

$298.17

$298.17 - $298.17

$298.17

Style: Albany
Configuration: Double Active/Passive (both doors open)
Color: White
PZ (Handle to Thumbturn): 4-1/8" (105mm)
Escutcheon Length: 9-7/8" (251mm)
Escutcheon Width: 1-5/8" (41.25mm)
Handle Length: 5-1/4" (133.4mm)
Neck: 2-1/8" (54mm)
Compatibility: Andersen 400 Series Frenchwood Hinged Patio Doors (In-Swing and Out-Swing) from 1988 to present
Includes: Inside and outside handles, escutcheon plates, thumb latch lock, mounting hardware, gasket, spindle, and installation instructions
Exterior keyed lock (9007620) sold separately

Estimated Delivery

Between December 13 and December 17

*Delivery dates are estimates and may vary based on availability and shipping method

Product Details

Andersen Albany Double Active Hardware Set – White (9007550)

This Andersen Albany Style hardware set is designed for double active (also called active/passive) hinged patio door configurations where both door panels can open. The set works with both the active and passive door panels, providing a complete trim solution for your Andersen 400 Series Frenchwood Hinged Patio Doors.

Compatible with Andersen 400 Series Frenchwood Hinged Patio Doors (both in-swing and out-swing configurations) manufactured from 1988 to present. The Albany style features a clean, traditional design in a white finish to match your door frame.

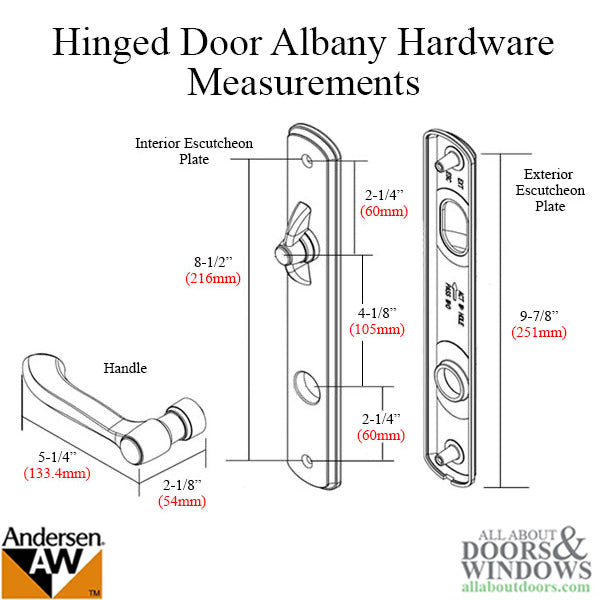

Technical Information

Escutcheon Width: 1-5/8 inches (41.25mm)
Escutcheon Length: 9-7/8 inches (251mm)
PZ (Handle Center to Thumbturn Center): 4-1/8 inches (105mm)
Neck: 2-1/8 inches (54mm)
Handle Length: 5-1/4 inches (133.4mm)
Top Screw Hole to Bottom Screw Hole: 8-1/2 inches (216mm)
Top Screw Hole to Thumbturn: 2-1/4 inches (60mm)
Thumbturn to Handle: 4-1/8 inches (105mm)
Handle to Bottom Screw: 2-1/4 inches (60mm)

Notes

Exterior Keyed Lock 9007620 is sold separately for lock/unlock functionality from outside with a key

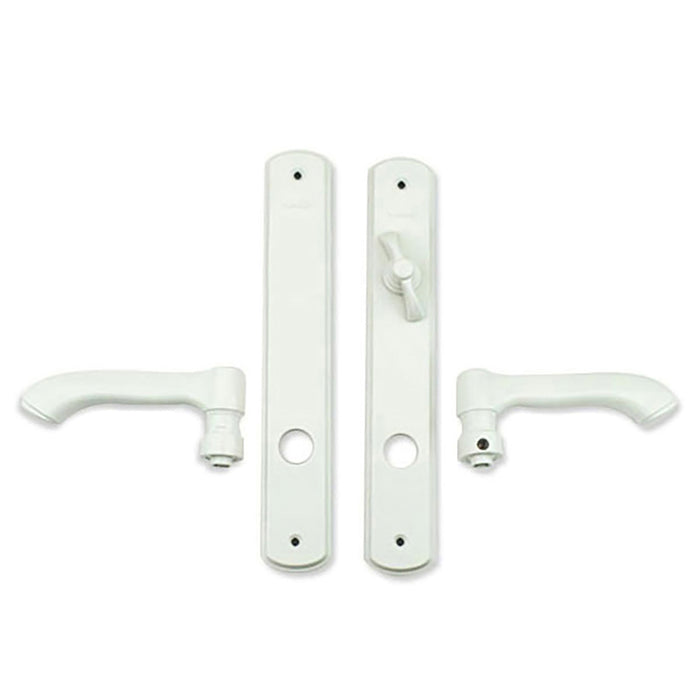

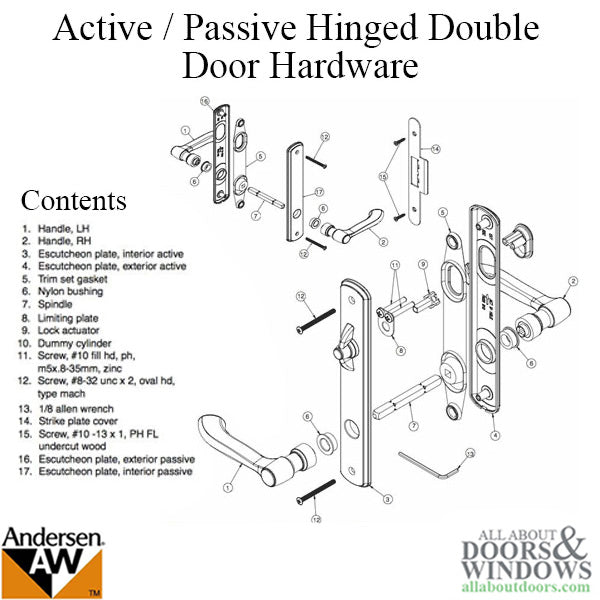

Complete hardware trim set includes inside and outside handles, inside and outside escutcheon plates, inside thumb latch lock, mounting studs, mounting bolts, gasket, spindle, set screws, bushings, and installation instructions

Related Parts

9007546 - Albany Active Single Hinged Door Hardware - White
9007547 - Albany Active Single Hinged Door Hardware - Stone
9007548 - Albany Active Single Hinged Door Hardware - Gold Dust
9007549 - Albany Active Single Hinged Door Hardware - Black
9007551 - Albany Active Style Double Hinged Door Hardware - Stone
9007552 - Albany Active Style Double Hinged Door Hardware - Gold Dust
9007553 - Albany Active Style Double Hinged Door Hardware - Black
9007620 - Exterior Keyed Lock

Priced and sold as a complete set.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between double active and single active hardware?

Double active (or active/passive) hardware is designed for French door configurations where both door panels can open. Single active hardware is for doors where only one panel opens.

Do I need to purchase a keyed lock separately?

Yes, the exterior keyed lock (part 9007620) is sold separately if you want to lock and unlock the door from the outside with a key.

Will this hardware fit my Andersen door?

This hardware set is compatible with Andersen 400 Series Frenchwood Hinged Patio Doors (in-swing and out-swing) manufactured from 1988 to present.
