P2000 Single Point Lock – 45mm Backset, 92mm PZ

P2000 Single Point Lock – 45mm Backset, 92mm PZ

SKU P2000-45SPL

$164.50 - $164.50
$164.50
$164.50 - $164.50
$164.50
  • Type: Single Point Lock (SPL) with deadbolt and spring latch only – NOT a multipoint lock
  • PZ: 92mm (3-5/8")

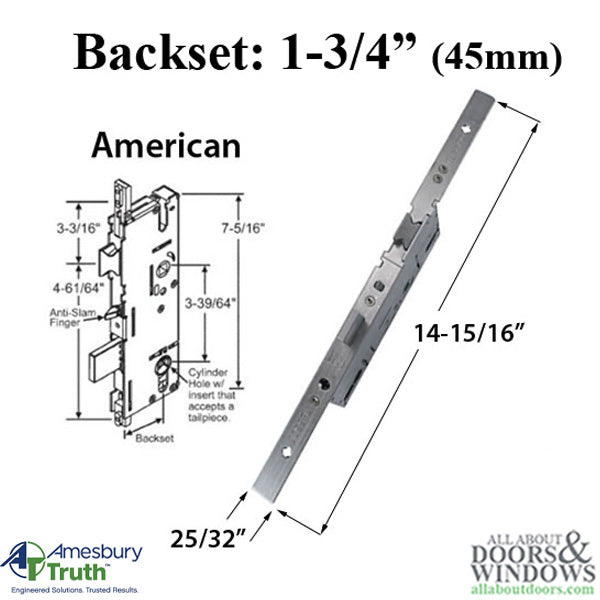

  • Backset: 45mm (1-3/4")
  • Faceplate Width: 20mm (25/32") – removable for MPL replacement
  • Deadbolt Throw: 1" (25.4mm)

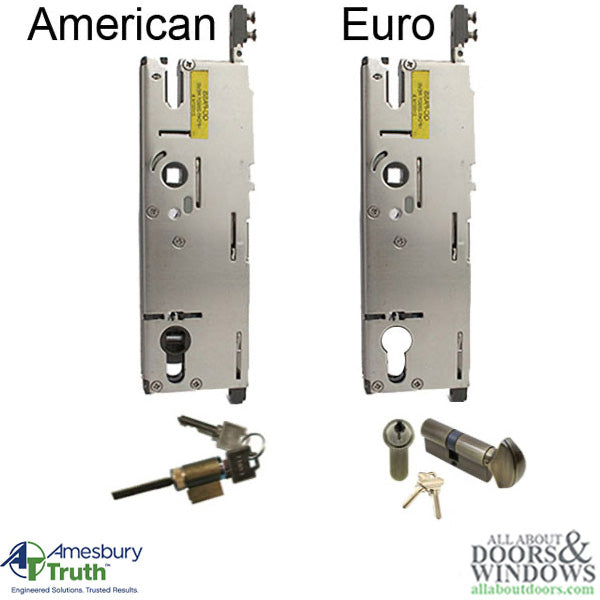

  • Cylinder Type: American
  • Faceplate Markings: LF2200
  • Replaces active gearbox on Amesbury MPL with same size and configuration
  • Latch handing can be reversed – see instructions
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

P2000 Single Point Lock – 45/92 (P2000-45SPL)

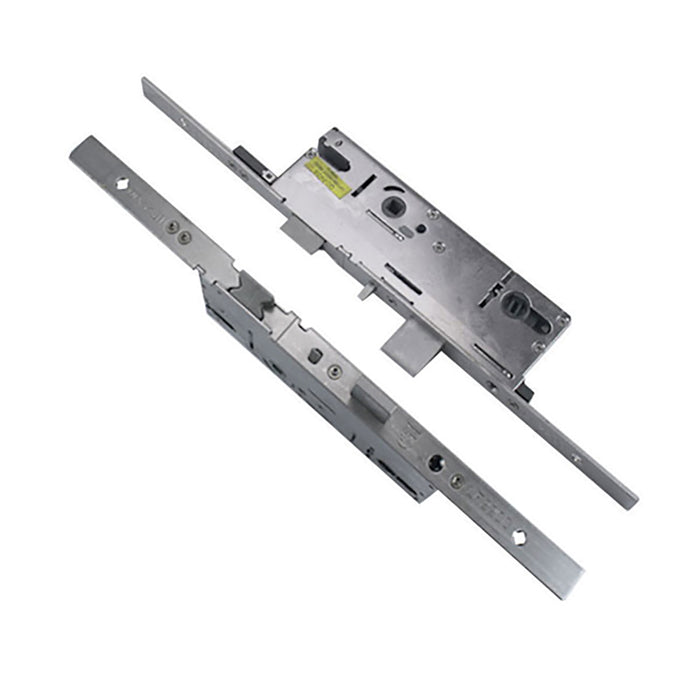

This P2000 Active Single Point Lock (SPL) features a 45mm backset and 92mm PZ configuration. It includes a deadbolt and spring latch only – this is NOT a multipoint lock (MPL). The lock case is designed to replace the active gearbox on Amesbury multipoint locks with the same size and configuration.

Before purchasing, compare your existing lock specifications carefully. Amesbury offers 3 different lock configurations, so verifying measurements is essential for proper fit.

Technical Information

  • Cylinder Type: American
  • Backset: 1-3/4 inches (45mm)
  • Handle PZ: 3-5/8 inches (92mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Faceplate Width: 25/32 inches (20mm) – removable for MPL replacement
  • Faceplate Markings: LF2200

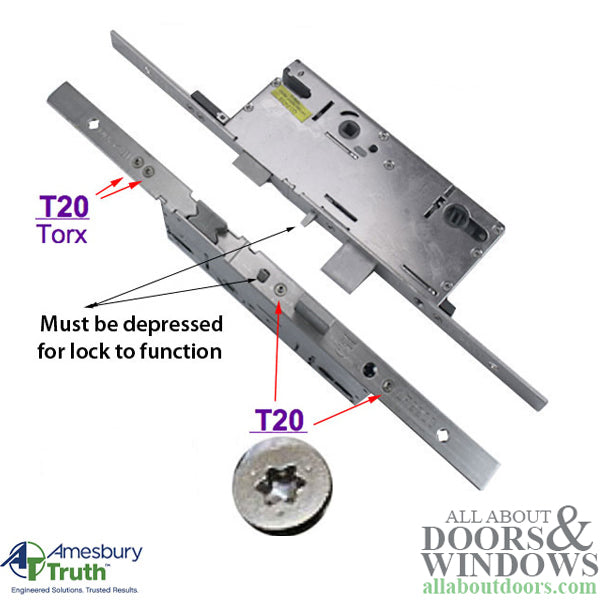

  • Installation Torque: T-20 torx star bit screws require 12-13 pounds of torque

Stamped With

  • LF2200 (on faceplate)

Notes

  • To change handing/latch reversal: Extend the deadbolt and pull the spring latch out, rotate to correct position, then check the function of the lock before closing the door
  • Amesbury has 3 different locks – compare information before ordering

Related Parts

  • Strybuc Industries 56-207 (similar or same part)

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Is this a multipoint lock?

No, this is a Single Point Lock (SPL) with a deadbolt and spring latch only. It is not a multipoint lock.

Can I reverse the latch handing on this lock?

Yes. Extend the deadbolt, pull the spring latch out, rotate to the correct position, and test the lock function before closing the door.

What cylinder type does this lock use?

This lock uses an American cylinder type.
